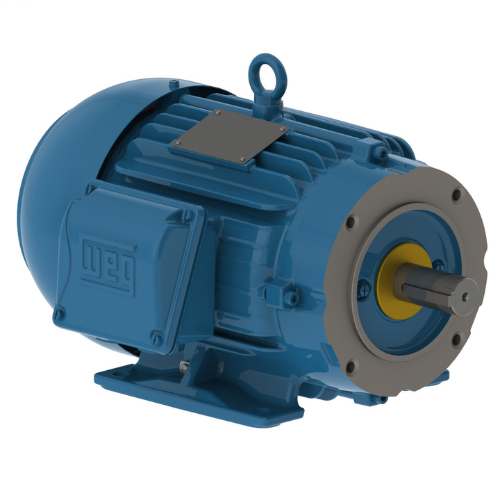

The W22 IEEE841 motors are designed for the petrochemical and chemical industries. They have rugged construction and long service life, for the most demanding industrial applications.
Additional Information
Catalog Number2536ST3QIE284TSC-W2
StandardNEMA MG-1
Frequency60 Hz
Voltage460 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 RPM
Output rating25 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame284/6TSC
Output25 HP (18.5 kW)
Rated speed3545 RPM
Slip0.0153
Rated voltage460 V
Rated current29.1 A
L. R. Amperes183 A
LRC6.3x(Code G)
No load current8.20 A
Rated torque37.0 ft.lb
Locked rotor torque2.4
Breakdown torque2.5
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)2.69 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²72.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
DrainType T, Threaded
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingAccording to IEEE-841 (96h)
Fan materialConductive Plastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity3
Shaft Locking DeviceWithout
Regreasing SystemStainless Steel, at Drive end and Non-drive end
Bolt MaterialCarbon Steel
Joints SealMolykote
Foot flatness(0.005 pol) 0.127 mm
