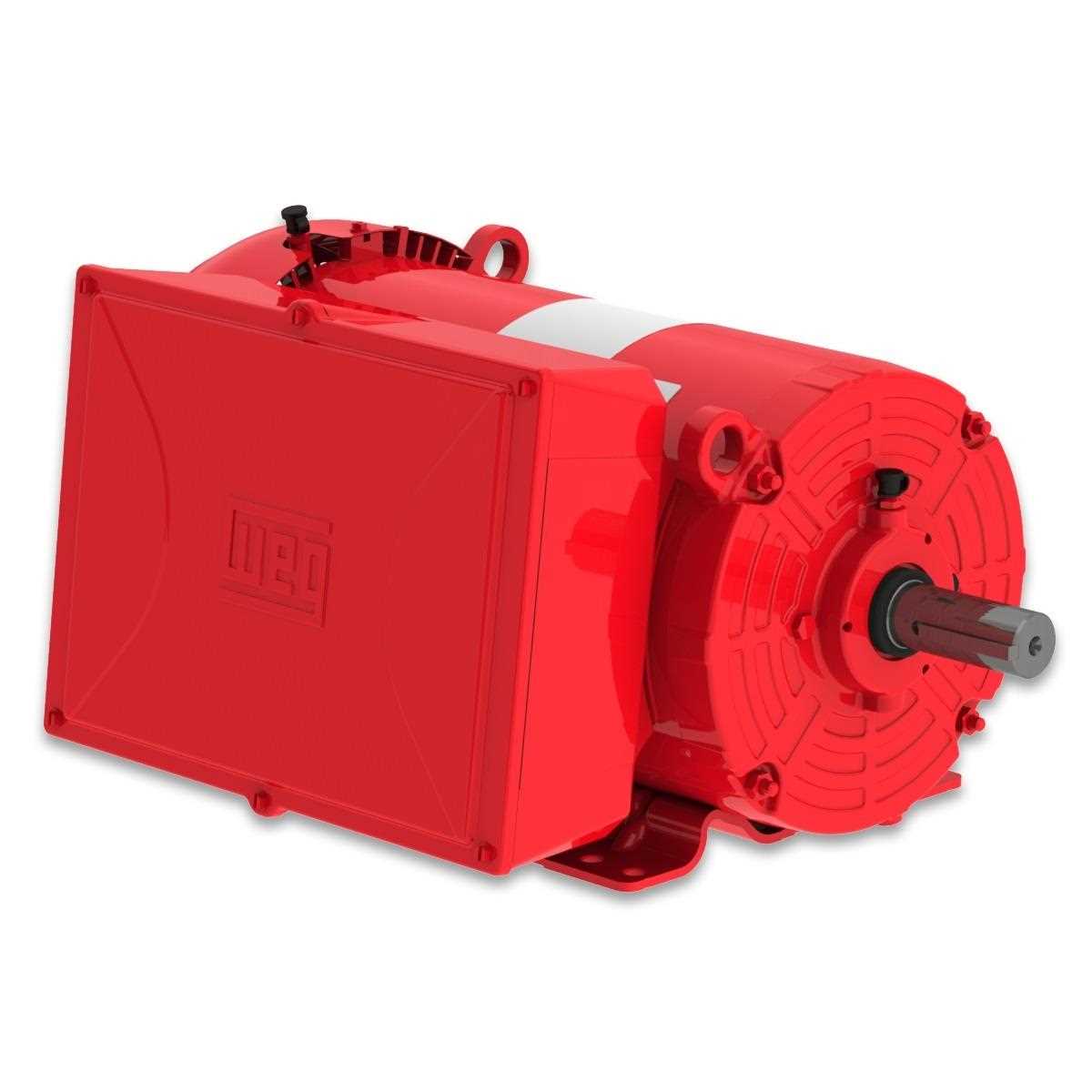

Product details
category: Farm Duty
manufacturer: Weg
mpn: 00718ES1DFD213T-S
weight: 172
Catalog Number:00718ES1DFD213T-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating7.5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5T
Output7.5 HP (5.5 kW)
Rated speed1755 RPM
Slip0.025
Rated voltage230 V
Rated current28.8 A
L. R. Amperes259 A
LRC9.0x(Code J)
No load current6.30 A
Rated torque22.4 ft.lb
Locked rotor torque3.9
Breakdown torque3
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)1.43 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²64.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.732"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3003 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Manual
Bolt MaterialCarbon Steel
Resilient BaseWithout
