category:
Farm Duty
manufacturer:
Weg
mpn:
01536AP1DGD215TZ-S
subcategory:
Grain Dryer
weight:
165
Product Description

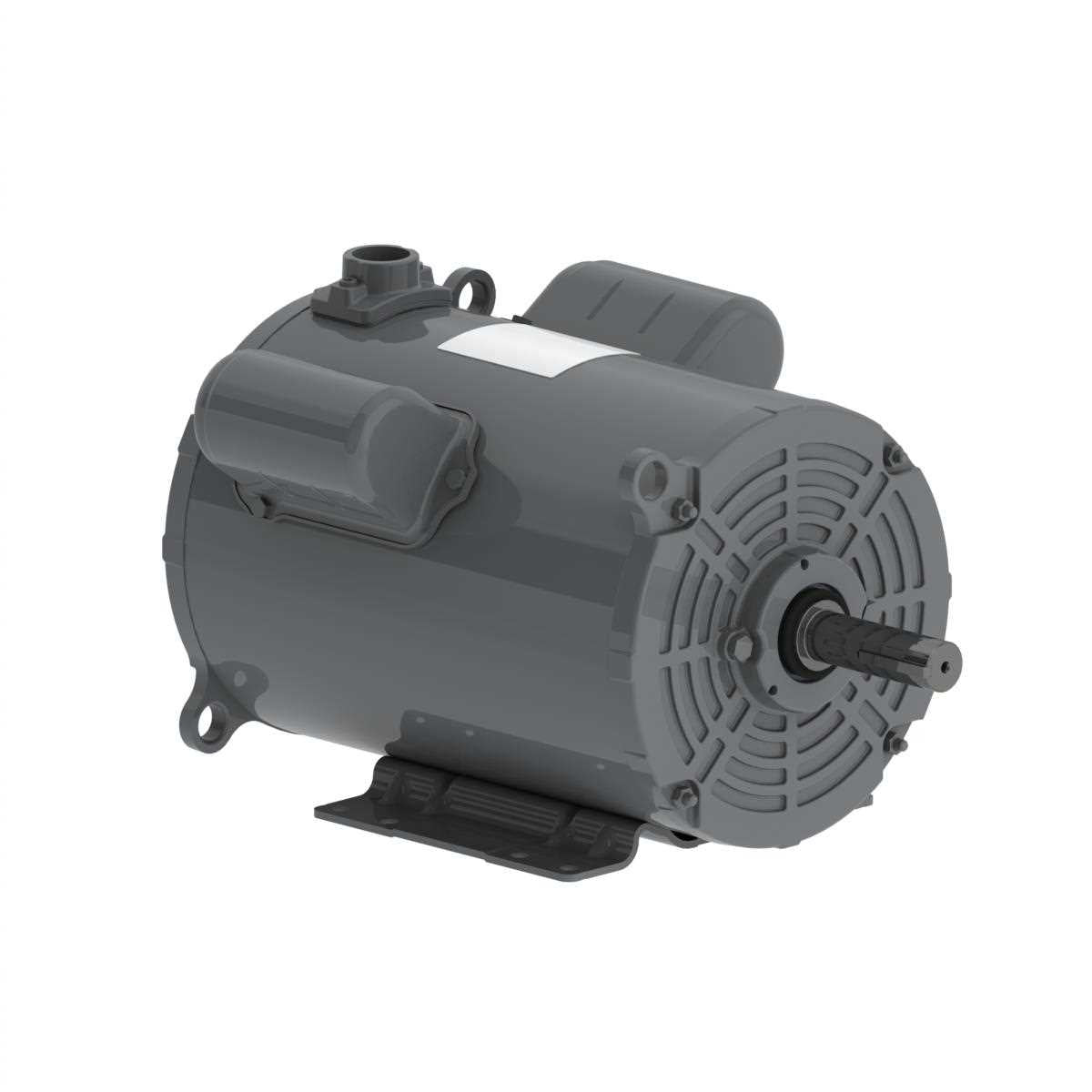

Weg - 01536AP1DGD215TZ-S
Catalog Number:01536AP1DGD215TZ-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 rpm
Output rating10-15 HP
MountingF-3
FlangeWithout
Terminal box¹Top
EnclosureIC410 - TEAO
Frame213/5TZ
Output10 HP (7.5 kW)
Rated speed3550 RPM
Slip0.0139
Rated voltage230 V
Rated current37.8 A
L. R. Amperes446 A
LRC11.8x(Code M)
No load current5.30 A
Rated torque14.8 ft.lb
Locked rotor torque2.1
Breakdown torque4.4
Locked rotor time14s (cold) 8s (hot)
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²75.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7031 207N (ISO 12944 - C2)
Grounding LugsIn the endshield
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Winding thermal protectionThermostat - 2 wires 1 per phase 155°C
Bolt MaterialCarbon Steel
Resilient BaseWithout
