category:
General Purpose
manufacturer:
Weg
mpn:
00736ET3P213TCF3-W22
subcategory:
Tefc Cast Iron
weight:
139
Product Description

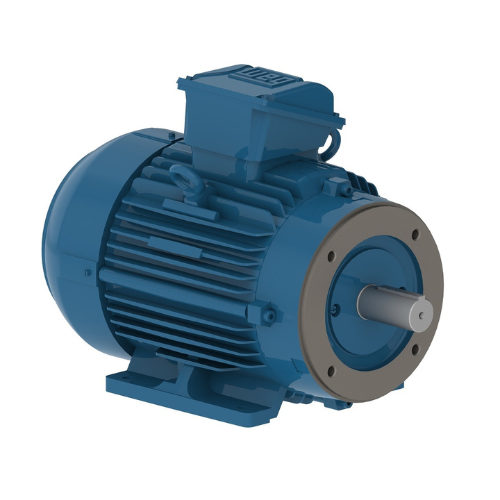

Weg - 00736ET3P213TCF3-W22
Catalog Number:0736ET3P213TCF3-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage200 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 RPM
Output rating7.5 HP
MountingF-3
FlangeC
Terminal box¹Top
EnclosureIC411 - TEFC
Frame213TC
Output7.5 HP (5.5 kW)
Rated speed3530 RPM
Slip0.0194
Rated voltage200 V
Rated current20.1 A
L. R. Amperes145 A
LRC7.2x(Code H)
No load current6.90 A
Rated torque11.2 ft.lb
Locked rotor torque2.1
Breakdown torque3
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.4665 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Shaft Locking DeviceWithout
