availability:
In stock
category:
General Purpose
custom_label_2:
in-stock
manufacturer:
Weg
mpn:
14052059
subcategory:
Aluminum Frame
weight:
69.6
Product Description

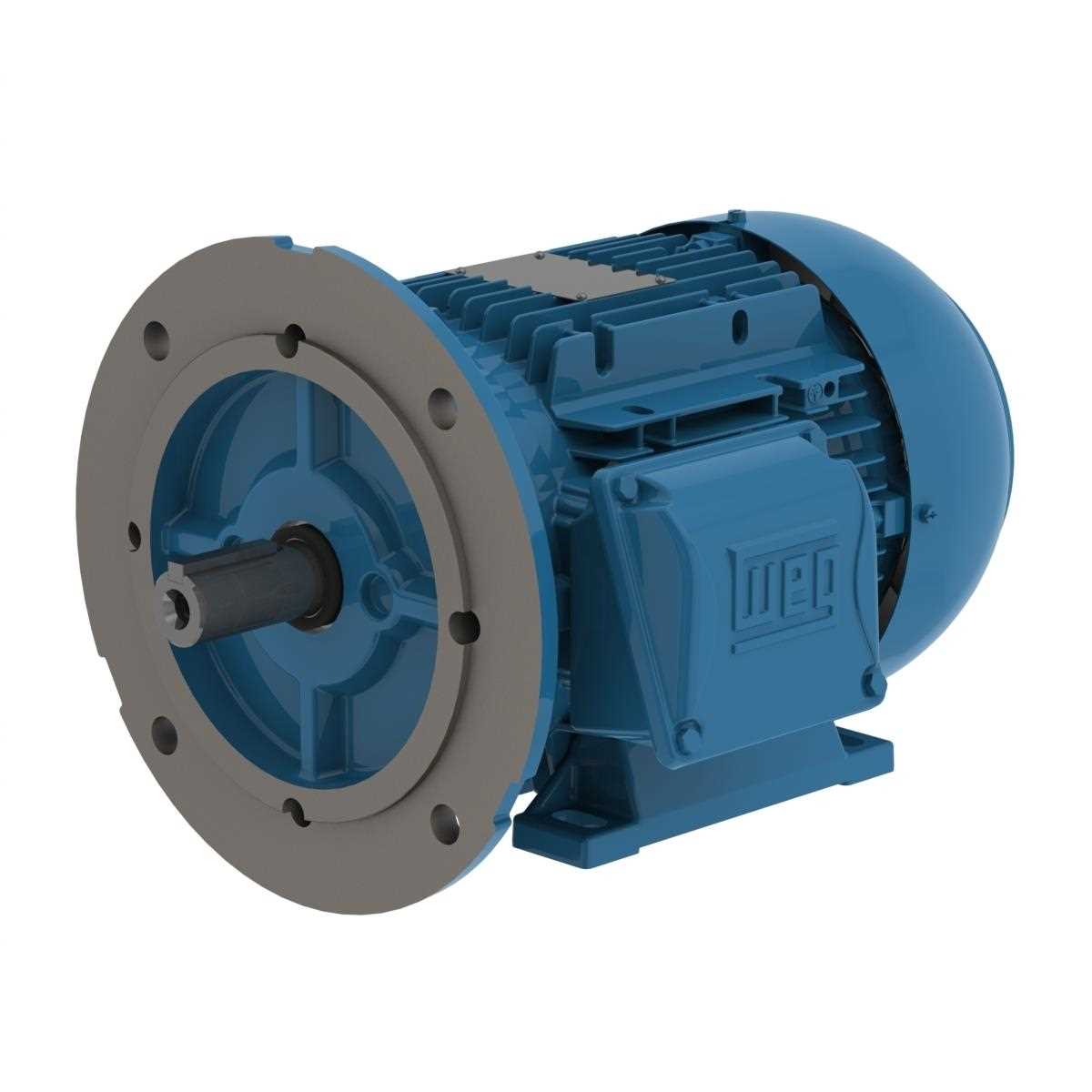

Weg - 14052059 Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.
Additional Information
Catalog Number00218ET3EAL100LFF-W2
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//380-415 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating3 HP
MountingB35L(E)
FlangeFF
Terminal box¹Right position
EnclosureIC411 - TEFC
Frame100L
Output3 HP (2.2 kW)
Rated speed1745 rpm
Slip3.06 %
Rated voltage230/460 V
Rated current8.22/4.11 A
L. R. Amperes75.6/37.8 A
LRC9.2
No load current4.40/2.20 A
Rated torque9.03 ft.lb
Locked rotor torque380 %
Breakdown torque370 %
Locked rotor time41s (cold) 23s (hot)
Moment of inertia (J)0.2136 sq.ft.lb
DesignN
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleS1
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²54.0 dB(A)
Frame MaterialAluminum
Impregnation MethodDip and Bake Polyester
Main terminal box hole2xM25x1,5
Terminal BlockBMC - 6 pins
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Connection Cables Quantity9
Shaft Locking DeviceWithout
