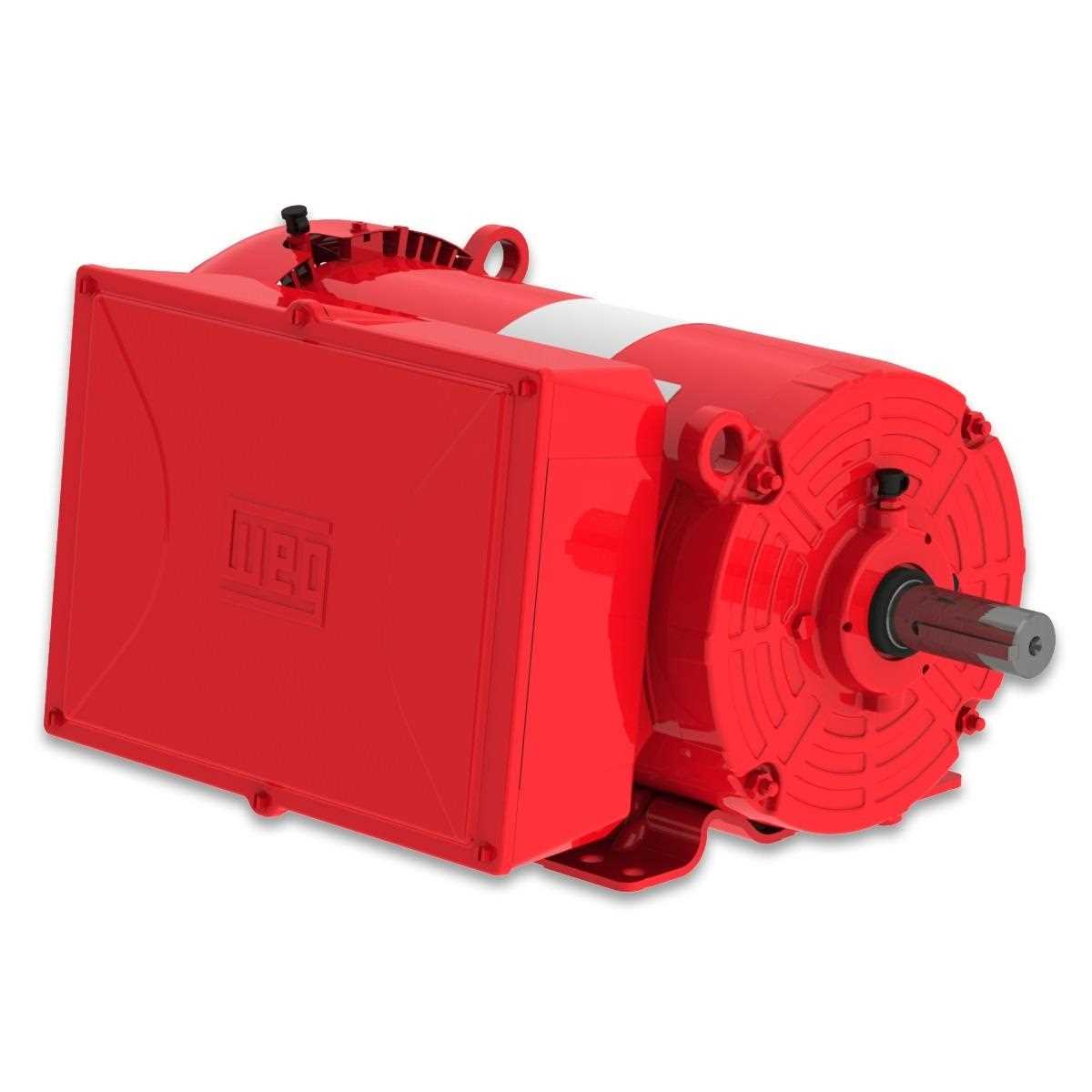

Product details
category: Farm Duty
manufacturer: Weg
mpn: 00518ES1DFD215T-S
weight: 171
Catalog Number:00518ES1DFD215T-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5T
Output5 HP (3.7 kW)
Rated speed1770 RPM
Slip0.0167
Rated voltage230 V
Rated current20.2 A
L. R. Amperes202 A
LRC10.0x(Code L)
No load current7.50 A
Rated torque14.8 ft.lb
Locked rotor torque3.9
Breakdown torque4
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)1.43 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²64.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.732"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3003 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Manual
Bolt MaterialCarbon Steel
Resilient BaseWithout
