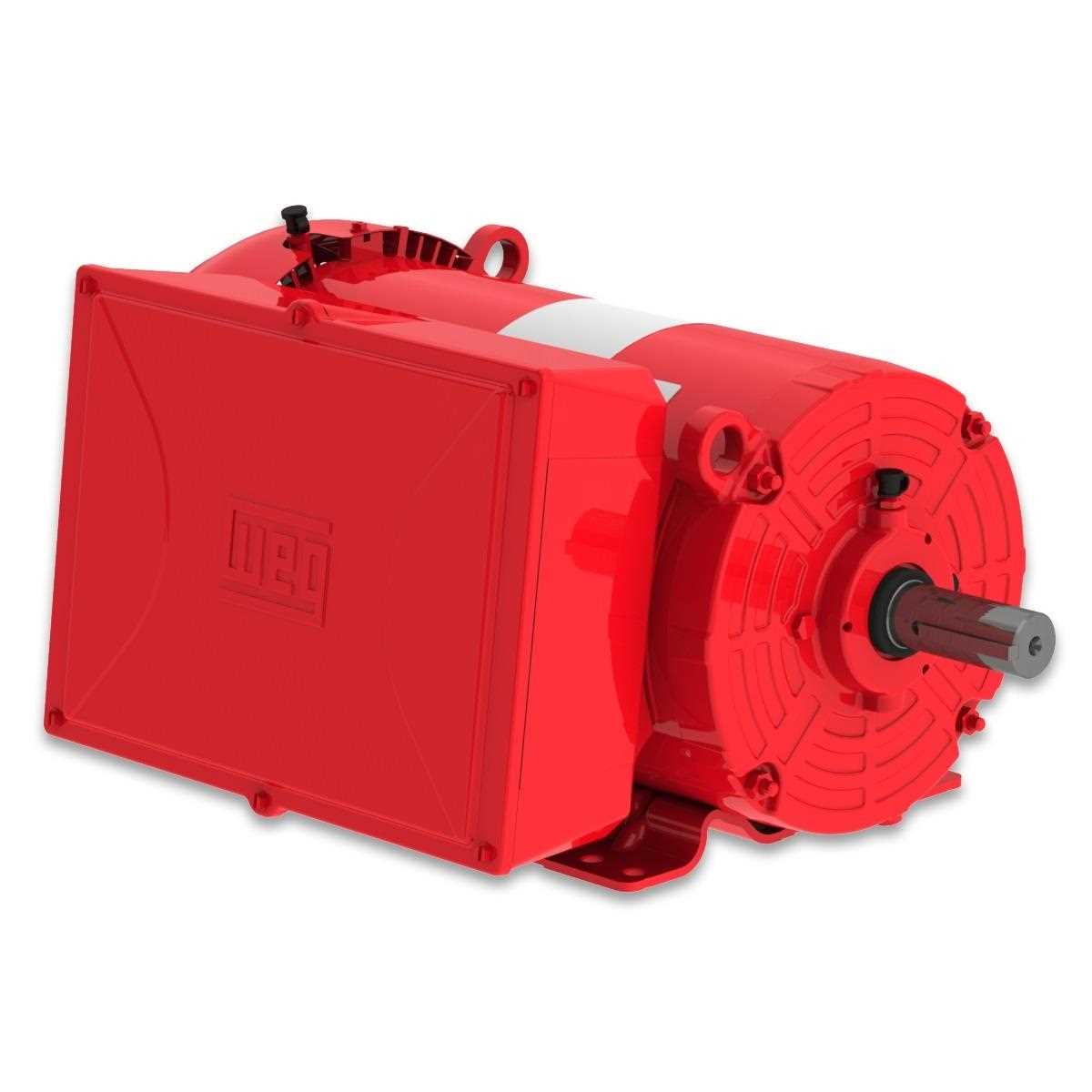

Weg Motors 14058211 Rolled Steel 10 HP 4P 213/5T 1Ph 230 V 60 Hz IC411 - TEFC - Foot-mounted- 01018ES1DFD215T-S

Weg Motors 14058211 Rolled Steel 10 HP 4P 213/5T 1Ph 230 V 60 Hz IC411 - TEFC - Foot-mounted- 01018ES1DFD215T-S

Dropship

Get it by Sat, Dec 14 - Thu, Dec 19

SKU SKU:kpi004-01018ES1DFD215T-S

Regular price $1,302.84 USD
Regular price Sale price $1,302.84 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Farm Duty
manufacturer: Weg
mpn: 01018ES1DFD215T-S
weight: 178

Product Description

Weg - 01018ES1DFD215T-S

Catalog Number:01018ES1DFD215T-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating10 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5T
Output10 HP (7.5 kW)
Rated speed1745 RPM
Slip0.0306
Rated voltage230 V
Rated current39.1 A
L. R. Amperes313 A
LRC8.0x(Code J)
No load current6.50 A
Rated torque30.1 ft.lb
Locked rotor torque3.2
Breakdown torque2.8
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)1.43 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²64.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.732"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3003 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Manual
Bolt MaterialCarbon Steel
Resilient BaseWithout
