category:
General Purpose
manufacturer:
Weg
mpn:
00718ES1EID215TC-W22
subcategory:
Tefc Cast Iron
weight:
183

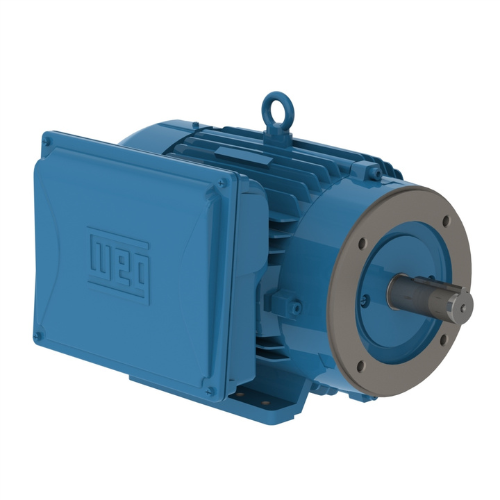

High starting torque Suitable for domestic and rural power supply conditions Adaptable design suitable for a variety of applications and needs
Additional Information
Catalog Number0718ES1EID215TC-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage208-230/460 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating7.5 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5TC
Output7.5 HP (5.5 kW)
Rated speed1750 RPM
Slip0.0278
Rated voltage208-230/460 V
Rated current32.0-30.0/15.0 A
L. R. Amperes246-231/116 A
LRC7.7x(Code H)
No load current8.97-10.4/5.20 A
Rated torque22.5 ft.lb
Locked rotor torque3.2
Breakdown torque2.5
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)1.09 sq.ft.lb
Insulation ClassF
Service factor1.15 (1.00 @ 208V)
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²63.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Shaft Locking DeviceWithout
