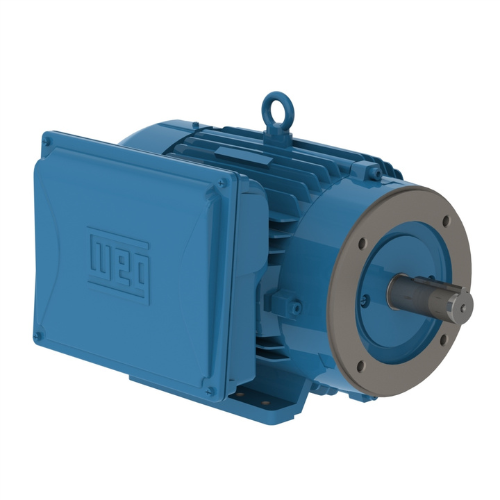

High starting torque Suitable for domestic and rural power supply conditions Adaptable design suitable for a variety of applications and needs
Additional Information
Catalog Number1018ES1EID215TC-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage208-230/460 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating10 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5TC
Output10 HP (7.5 kW)
Rated speed1740 RPM
Slip0.0333
Rated voltage208-230/460 V
Rated current44.5-40.8/20.4 A
L. R. Amperes298-273/137 A
LRC6.7x(Code G)
No load current9.66-11.2/5.60 A
Rated torque30.2 ft.lb
Locked rotor torque2.6
Breakdown torque2.4
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)1.15 sq.ft.lb
Insulation ClassF
Service factor1.15 (1.00 @ 208V)
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²63.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Shaft Locking DeviceWithout
CategoryGeneral Purpose
ManufacturerWeg
Mpn01018ES1EID215TC-W22
SubcategoryTefc Cast Iron
Weight197
