category:
General Purpose
manufacturer:
Weg
mpn:
00536ES1E184T-W22
subcategory:
Tefc Cast Iron
weight:
108

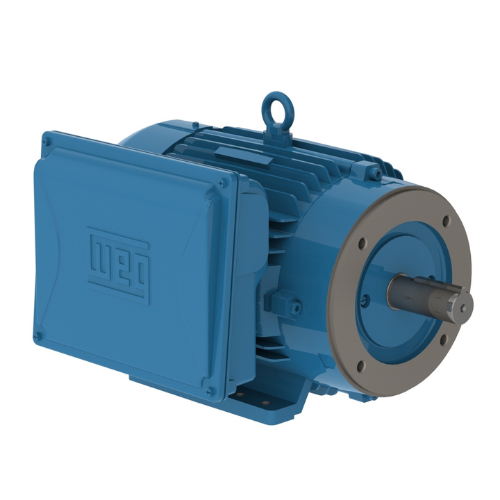

Product Description
High starting torque Suitable for domestic and rural power supply conditions Adaptable design suitable for a variety of applications and needs
Additional Information
Catalog Number0536ES1E184T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage208-230/460 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 RPM
Output rating5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame182/4T
Output5 HP (3.7 kW)
Rated speed3515 RPM
Slip0.0236
Rated voltage208-230/460 V
Rated current20.5-19.0/9.50 A
L. R. Amperes146-135/67.5 A
LRC7.1x(Code G)
No load current3.36-3.90/1.95 A
Rated torque7.47 ft.lb
Locked rotor torque2.8
Breakdown torque2.5
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)0.2164 sq.ft.lb
Insulation ClassF
Service factor1.15 (1.00 @ 208V)
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²72.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Shaft Locking DeviceWithout
