category:
General Purpose
manufacturer:
Weg
mpn:
01218ES1E215TC-W22
subcategory:
Tefc Cast Iron
weight:
211

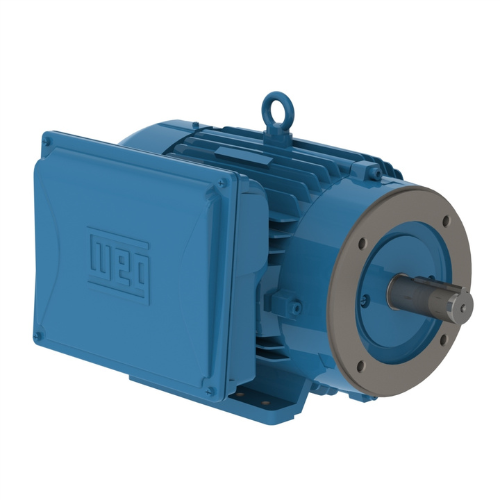

Product Description
High starting torque Suitable for domestic and rural power supply conditions Adaptable design suitable for a variety of applications and needs
Additional Information
Catalog Number1218ES1E215TC-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage208-230/460 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating12.5 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5TC
Output12.5 HP (9.2 kW)
Rated speed1740 RPM
Slip0.0333
Rated voltage208-230/460 V
Rated current54.0-52.2/26.1 A
L. R. Amperes405-392/196 A
LRC7.5x(Code J)
No load current15.6-18.1/9.05 A
Rated torque37.7 ft.lb
Locked rotor torque2.2
Breakdown torque2.4
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)1.29 sq.ft.lb
Insulation ClassH
Service factor1.15 (1.00 @ 208V)
Temperature rise125 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²63.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Shaft Locking DeviceWithout
