category:
General Purpose
manufacturer:
Weg
mpn:
00536ES1B184T-W22
subcategory:
Tefc Cast Iron
weight:
103

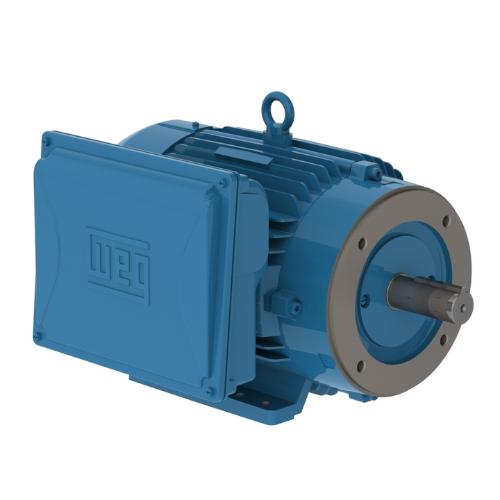

Product Description
High starting torque Suitable for domestic and rural power supply conditions Adaptable design suitable for a variety of applications and needs
Additional Information
Catalog Number0536ES1B184T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 RPM
Output rating5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame182/4T
Output5 HP (3.7 kW)
Rated speed3515 RPM
Slip0.0236
Rated voltage115/208-230 V
Rated current41.1/22.1-20.8 A
L. R. Amperes358/192-181 A
LRC8.7x(Code K)
No load current15.0/0.000-7.50 A
Rated torque7.47 ft.lb
Locked rotor torque3.2
Breakdown torque3.2
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.1898 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Shaft Locking DeviceWithout
