Product details
category: Farm Duty
manufacturer: Weg
mpn: 00118ES1RAD56N
subcategory: Auger Drive
weight: 36.5

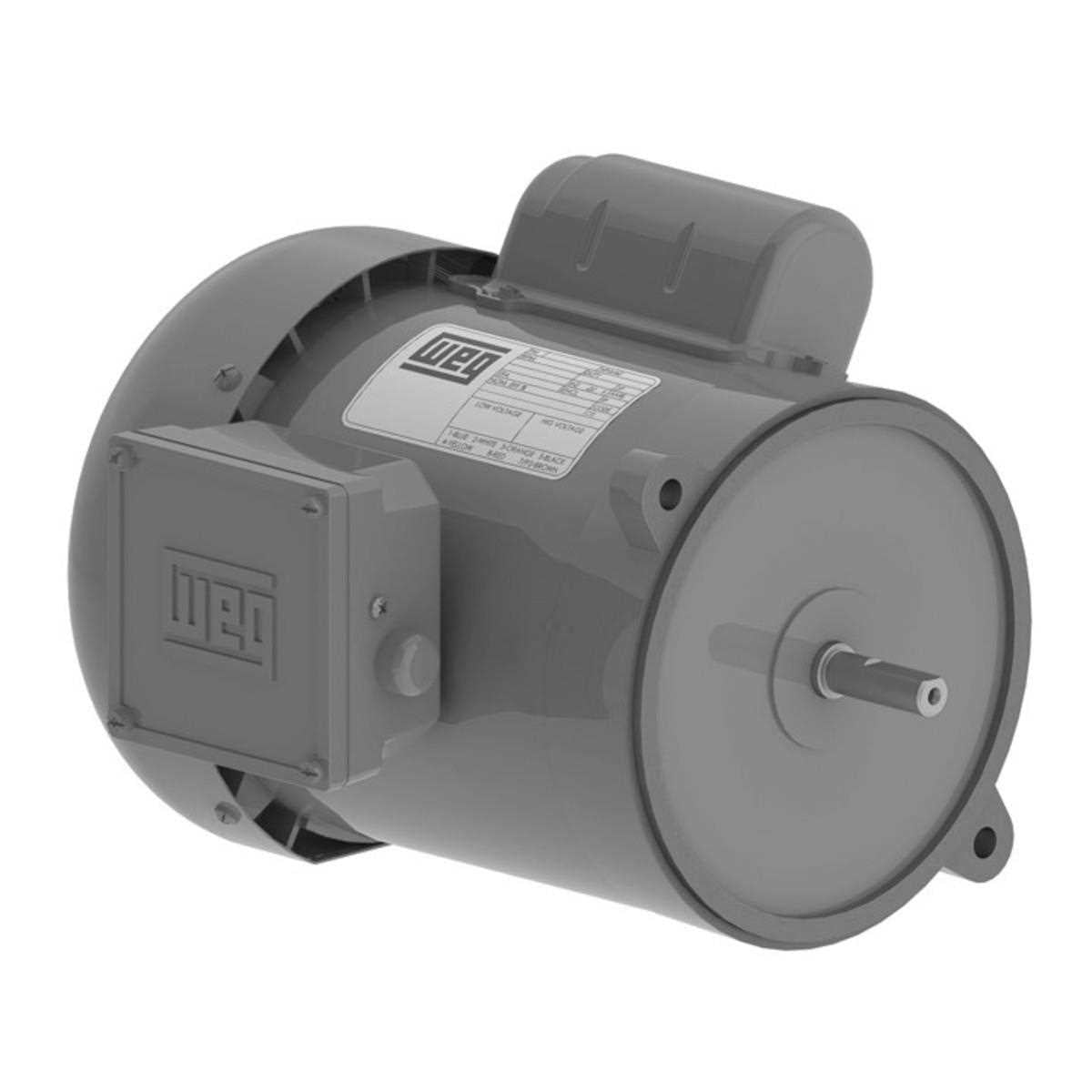

WEG Auger Drive motors are specifically designed for Feed-Drive units requiring a reliable and efficient motor. Provided with mechanical protection of centrifugal switch to prevent damage to the motor in case of overspeed, manual thermal overload protection and two bolts mounting NEMA "N" flange.
Additional Information
Catalog Number00118ES1RAD56N
StandardNEMA MG-1
Frequency60 Hz
Voltage115/230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating1 HP
MountingF-1
FlangeN FLANGE
Terminal box¹Left position
EnclosureIC411 - TEFC
FrameD56N
Output1 HP (0.75 kW)
Rated speed1750 RPM
Slip0.0278
Rated voltage115/230 V
Rated current14.0/7.00 A
L. R. Amperes91.0/45.5 A
LRC6.5x(Code M)
No load current11.5/5.75 A
Rated torque3.00 ft.lb
Locked rotor torque3.2
Breakdown torque2.7
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.1338 sq.ft.lb
Insulation ClassB
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²55.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole2xNPT 1/2"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Manual
Resilient BaseWithout
