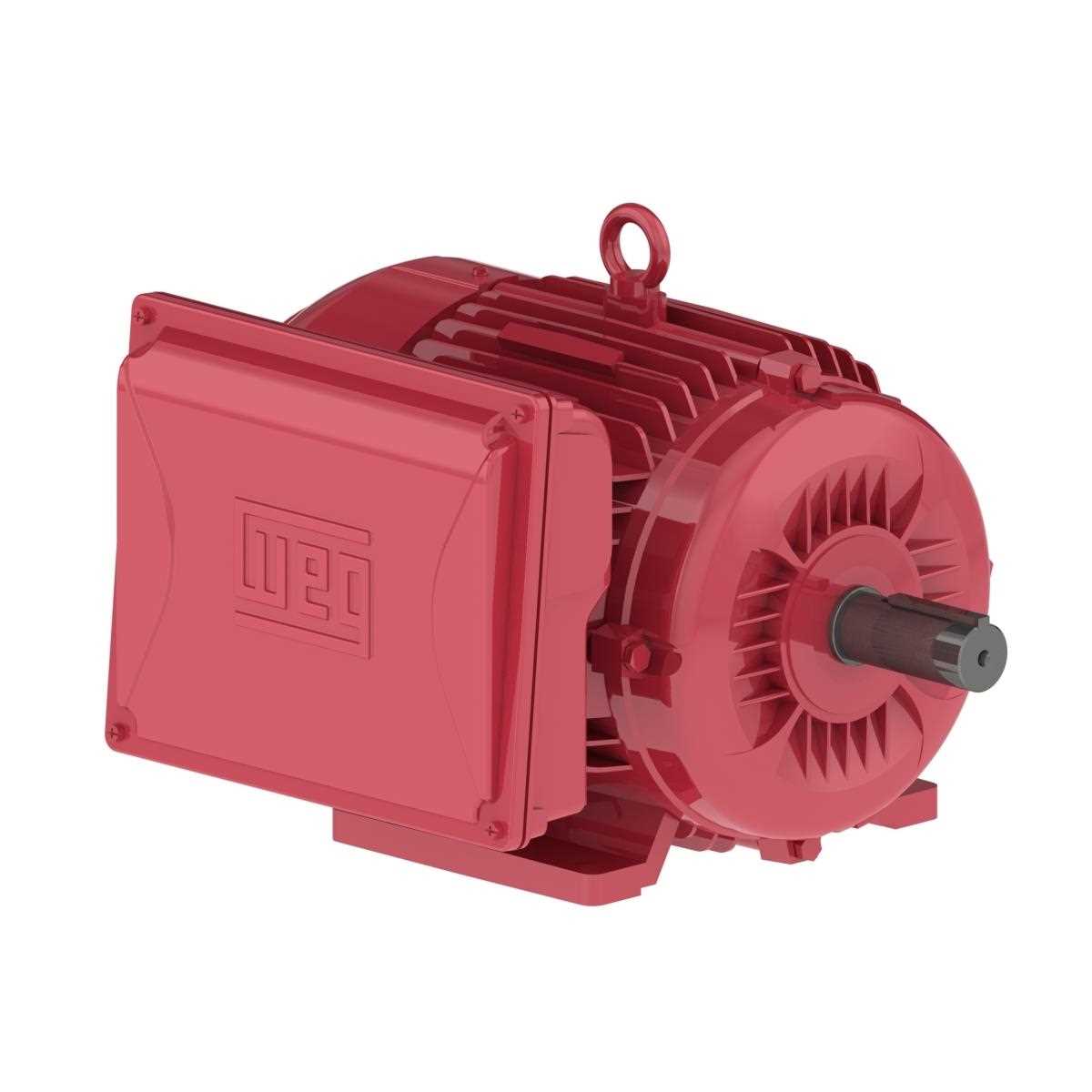

Product details
category: Farm Duty
manufacturer: Weg
mpn: 00318ES1DFD184T-W22
weight: 106
Catalog Number:00318ES1DFD184T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating3 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame182/4T
Output3 HP (2.2 kW)
Rated speed1745 RPM
Slip0.0306
Rated voltage230 V
Rated current13.8 A
L. R. Amperes106 A
LRC7.7x(Code K)
No load current6.70 A
Rated torque9.03 ft.lb
Locked rotor torque2.9
Breakdown torque2.7
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.3735 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²60.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3003 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Manual
Shaft Locking DeviceWithout
