category:
Pump Motors
manufacturer:
Weg
mpn:
02536OT3H256JM-SG
subcategory:
Aegis Inside
weight:
174

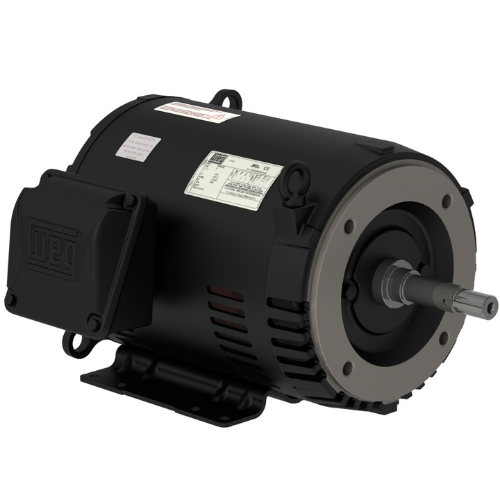

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.
Additional Information
Catalog Number02536OT3H256JM-SG
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles2
Synchronous speed3600 RPM
Output rating25 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC01 - ODP
Frame254/6JM
Output25 HP (18.5 kW)
Rated speed3530 RPM
Slip0.0194
Rated voltage575 V
Rated current23.3 A
L. R. Amperes147 A
LRC6.3x(Code G)
No load current9.12 A
Rated torque37.2 ft.lb
Locked rotor torque1.8
Breakdown torque2.9
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)0.9155 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²70.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.732"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSuperior
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Regreasing SystemAt Drive end and Non-drive end
Bolt MaterialCarbon Steel
Resilient BaseWithout
