category:
Pump Motors
manufacturer:
Weg
mpn:
00736ET3H213JM-SG
subcategory:
Closed Couple Pump - ODP
weight:
142
Product Description

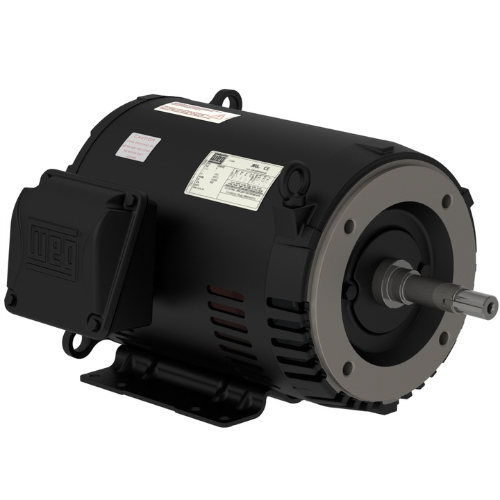

Weg - 00736ET3H213JM-SG The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance.
Additional Information
Catalog Number00736ET3H213JM-SG
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 RPM
Output rating7.5 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5JM
Output7.5 HP (5.5 kW)
Rated speed3530 RPM
Slip0.0194
Rated voltage575 V
Rated current6.94 A
L. R. Amperes52.7 A
LRC7.6x(Code H)
No load current2.65 A
Rated torque11.2 ft.lb
Locked rotor torque2.6
Breakdown torque3
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)0.5496 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²70.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.377"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Bolt MaterialCarbon Steel
Resilient BaseWithout
