category:
General Purpose
manufacturer:
Weg
mpn:
01418ES1D215TZ-W22
subcategory:
Tefc Cast Iron
weight:
220

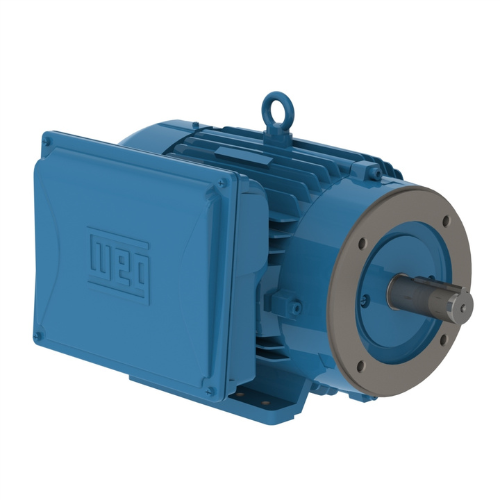

High starting torque Suitable for domestic and rural power supply conditions Adaptable design suitable for a variety of applications and needs
Additional Information
Catalog Number1418ES1D215TZ-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating14 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame215TZ
Output14 HP (10.3 kW)
Rated speed1730 RPM
Slip0.0389
Rated voltage230 V
Rated current60.7 A
L. R. Amperes443 A
LRC7.3x(Code J)
No load current28.0 A
Rated torque42.5 ft.lb
Locked rotor torque2.4
Breakdown torque2.5
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)1.29 sq.ft.lb
Insulation ClassH
Service factor1.07
Temperature rise125 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Shaft Locking DeviceWithout
