category:
Severe Duty
manufacturer:
Weg
mpn:
00512AT3HCT215T-W22
subcategory:
Cooling Tower
weight:
205
Product Description

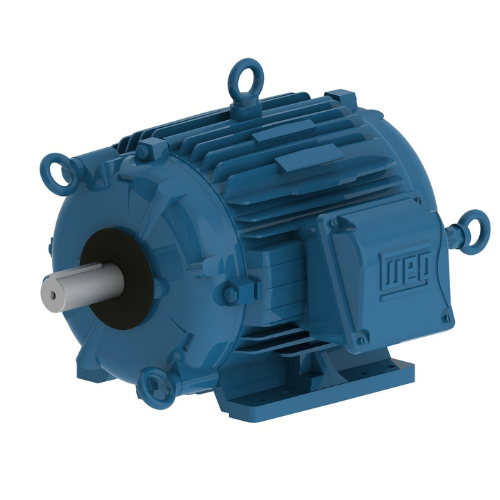

Weg - 00512AT3HCT215T-W22 These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
Additional Information
Catalog Number0512AT3HCT215T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles6
Degree of ProtectionIP55
Synchronous speed1200 RPM
Output rating5 HP
MountingF-2
FlangeWithout
Terminal box¹Right position
EnclosureIC410 - TEAO
Frame213/5T
Output5 HP (3.7 kW)
Rated speed1170 RPM
Slip0.025
Rated voltage575 V
Rated current5.46 A
L. R. Amperes37.2 A
LRC6.8x(Code J)
No load current2.76 A
Rated torque22.4 ft.lb
Locked rotor torque1.7
Breakdown torque2.6
Locked rotor time102s (cold) 57s (hot)
Moment of inertia (J)1.47 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²55.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDouble impregnation polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingComplete (200h)
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Shaft Locking DeviceWithout
Joints SealPermatex
Space Heater Voltage110-127/200-240 V
