category:
Pump Motors
manufacturer:
Weg
mpn:
02036ET3H256JM-SG
subcategory:
Closed Couple Pump - ODP
weight:
211
Product Description

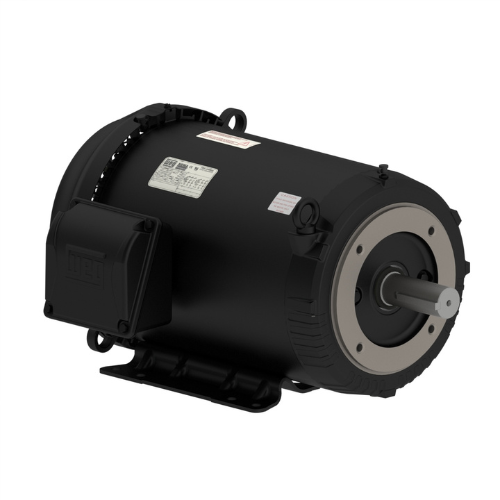

Weg - 02036ET3H256JM-SG The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance.
Additional Information
Catalog Number02036ET3H256JM-SG
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 RPM
Output rating20 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame254/6JM
Output20 HP (15 kW)
Rated speed3515 RPM
Slip0.0236
Rated voltage575 V
Rated current18.2 A
L. R. Amperes120 A
LRC6.6x(Code G)
No load current5.50 A
Rated torque29.9 ft.lb
Locked rotor torque2
Breakdown torque2.9
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)1.22 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²75.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.732"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSuperior
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Regreasing SystemAt Drive end and Non-drive end
Bolt MaterialCarbon Steel
Resilient BaseWithout
