Product details
category: Severe Duty
manufacturer: Weg
mpn: 00212AT3ECT184T-W22
subcategory: Cooling Tower
weight: 102

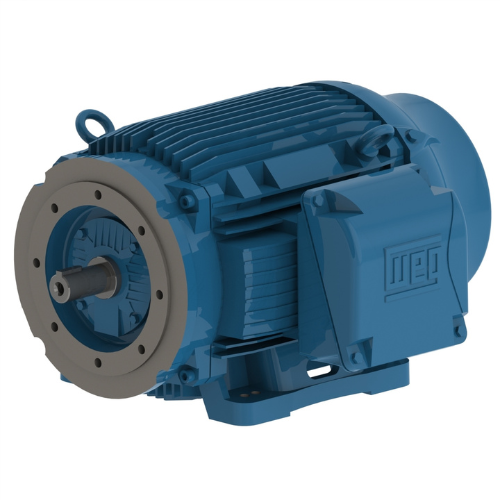

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
Additional Information
Catalog Number0212AT3ECT184T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460 V
Number of poles6
Degree of ProtectionIP55
Synchronous speed1200 RPM
Output rating2 HP
MountingF-2
FlangeWithout
Terminal box¹Right position
EnclosureIC410 - TEAO
Frame182/4T
Output2 HP (1.5 kW)
Rated speed1170 RPM
Slip0.025
Rated voltage230/460 V
Rated current6.44/3.22 A
L. R. Amperes48.3/24.2 A
LRC7.5x(Code L)
No load current3.80/1.90 A
Rated torque8.98 ft.lb
Locked rotor torque3
Breakdown torque3.5
Locked rotor time55s (cold) 31s (hot)
Moment of inertia (J)0.6210 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²52.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDouble impregnation polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingComplete (200h)
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Shaft Locking DeviceWithout
Joints SealPermatex
Space Heater Voltage110-127/200-240 V
