category:
Severe Duty
manufacturer:
Weg
mpn:
00218ET3HCT145TF1-W2
subcategory:
Cooling Tower
weight:
50
Product Description

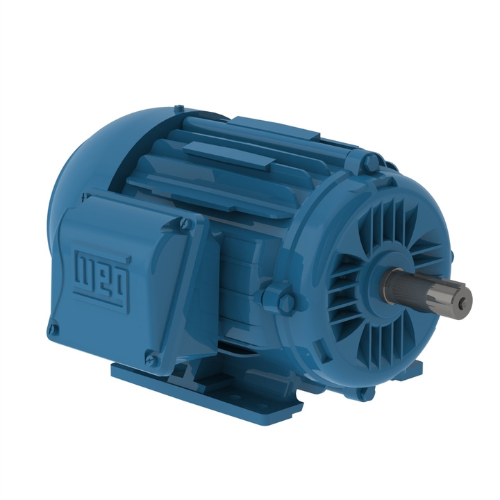

Weg - 00218ET3HCT145TF1-W2 These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
Additional Information
Catalog Number0218ET3HCT145TF1-W2
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating2 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame143/5T
Output2 HP (1.5 kW)
Rated speed1750 RPM
Slip0.0278
Rated voltage575 V
Rated current2.23 A
L. R. Amperes18.5 A
LRC8.3x(Code L)
No load current1.30 A
Rated torque6.00 ft.lb
Locked rotor torque2.7
Breakdown torque3.2
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)0.1561 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²51.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDouble impregnation polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Shaft Locking DeviceWithout
Joints SealPermatex
Space Heater Voltage200 - 240 V
