Product details
category: Severe Duty
manufacturer: Weg
mpn: 05018AT3PCT326T-W22
subcategory: Cooling Tower
weight: 587

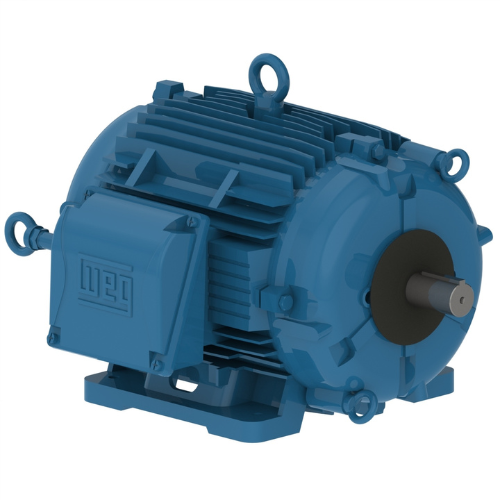

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
Additional Information
Catalog Number5018AT3PCT326T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage200 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating50 HP
MountingF-2
FlangeWithout
Terminal box¹Right position
EnclosureIC410 - TEAO
Frame324/6T
Output50 HP (37 kW)
Rated speed1775 RPM
Slip0.0139
Rated voltage200 V
Rated current136 A
L. R. Amperes844 A
LRC6.2x(Code G)
No load current54.0 A
Rated torque148 ft.lb
Locked rotor torque2.29
Breakdown torque2.7
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)9.16 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²70.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDouble impregnation polyester
Main terminal box holeNPT 2"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingComplete (200h)
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Shaft Locking DeviceWithout
Joints SealPermatex
Space Heater Voltage110-127/200-240 V
