category:
Washdown Duty
country_of_origin:
TW
manufacturer:
Weg
mpn:
00336ET3EHW182T-S
subcategory:
HydroWash - White Epoxy
weight:
66.7
Product Description

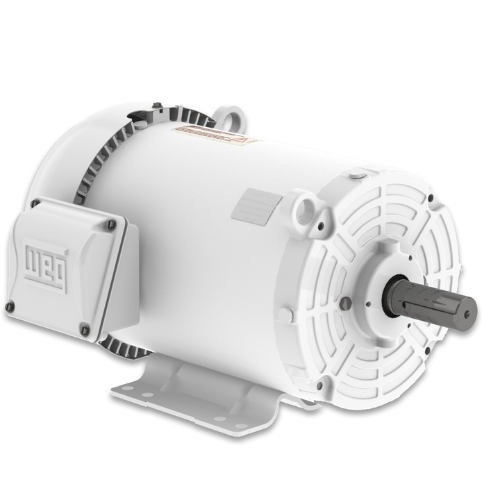

Weg - 00336ET3EHW182T-S
Catalog Number:00336ET3EHW182T-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles2
Degree of ProtectionIP56
Synchronous speed3600 RPM
Output rating3 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame182/4T
Output3 HP (2.2 kW)
Rated speed3515 RPM
Slip0.0236
Rated voltage230/460 V
Rated current7.34/3.67 A
L. R. Amperes64.6/32.3 A
LRC8.8x(Code K)
No load current3.22/1.61 A
Rated torque4.48 ft.lb
Locked rotor torque2.2
Breakdown torque3
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)0.1564 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft MaterialAISI 304 Stainless Steel
Painting04501 205E
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Bolt MaterialStainless Steel
Joints SealPermatex
Resilient BaseWithout
