category:
Brake Motor
manufacturer:
Weg
mpn:
00718ET3EBM213T-S
weight:
149
Product Description

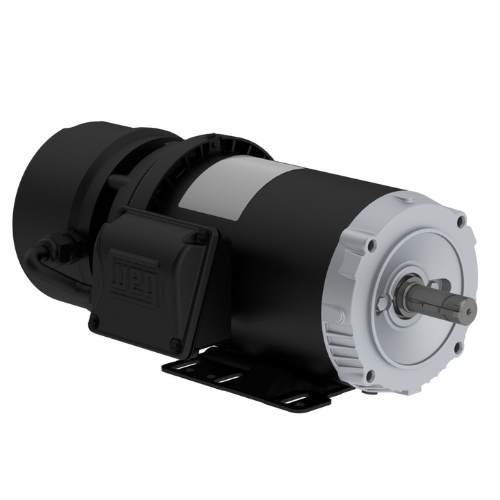

Weg - 00718ET3EBM213T-S The W01 brake motor line has been designed for equipment and applications that require fast stops for safety, accurate positioning and time saving. This is possible since the brakes are locked with springs and electrically released. It also provides the brake operation when failures are presented, such as interruption or failure on the power supply, so the brake will hold the load as protection. These motors are the best option to operate applications requiring safety stop and, thanks to its AC brakes, dispensing the use of rectifiers.
Additional Information
Catalog Number00718ET3EBM213T-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating7.5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5T
Output7.5 HP (5.5 kW)
Rated speed1770 RPM
Slip0.0167
Rated voltage230/460 V
Rated current18.1/9.07 A
L. R. Amperes132/66.2 A
LRC7.3x(Code H)
No load current8.81/4.41 A
Rated torque22.3 ft.lb
Locked rotor torque2.6
Breakdown torque3
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)0.9380 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²60.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialAluminum
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Bolt MaterialCarbon Steel
Brake input Voltage208-230/460//190/380 V
Resilient BaseWithout
