category:
Air Handling
manufacturer:
Weg
mpn:
.5018OS1BFBW56-S
subcategory:
Condenser
weight:
18.7
Product Description

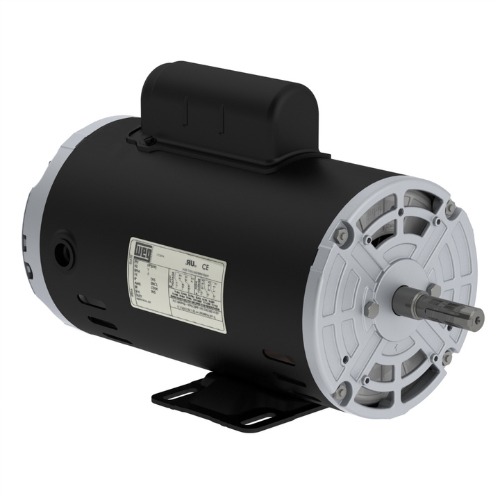

Weg - .5018OS1BFBW56-S
Catalog Number:5018OS1BFBW56-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles4
Synchronous speed1800 RPM
Output rating0.5 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC01 - ODP
FrameW56
Output0.5 HP (0.37 kW)
Rated speed1735 RPM
Slip0.0361
Rated voltage115/208-230 V
Rated current8.24/4.56-4.12 A
L. R. Amperes47.8/26.4-23.9 A
LRC5.8x(Code M)
No load current6.80/2.93-3.40 A
Rated torque1.51 ft.lb
Locked rotor torque3.2
Breakdown torque2.7
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)0.0475 sq.ft.lb
DesignN
Insulation ClassF
Service factor1.25
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +50°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²50.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Drip CoverNot Balanced
Overload protector (phenolic)Without
Connection Cables QuantityWithout overload protector
Bolt MaterialCarbon Steel
Resilient BaseWithout
