availability:
In stock
category:
Air Handling
custom_label_2:
in-stock
manufacturer:
Weg
mpn:
00218OS1BFB56-S
subcategory:
Fan And Blower
weight:
49.5
Product Description

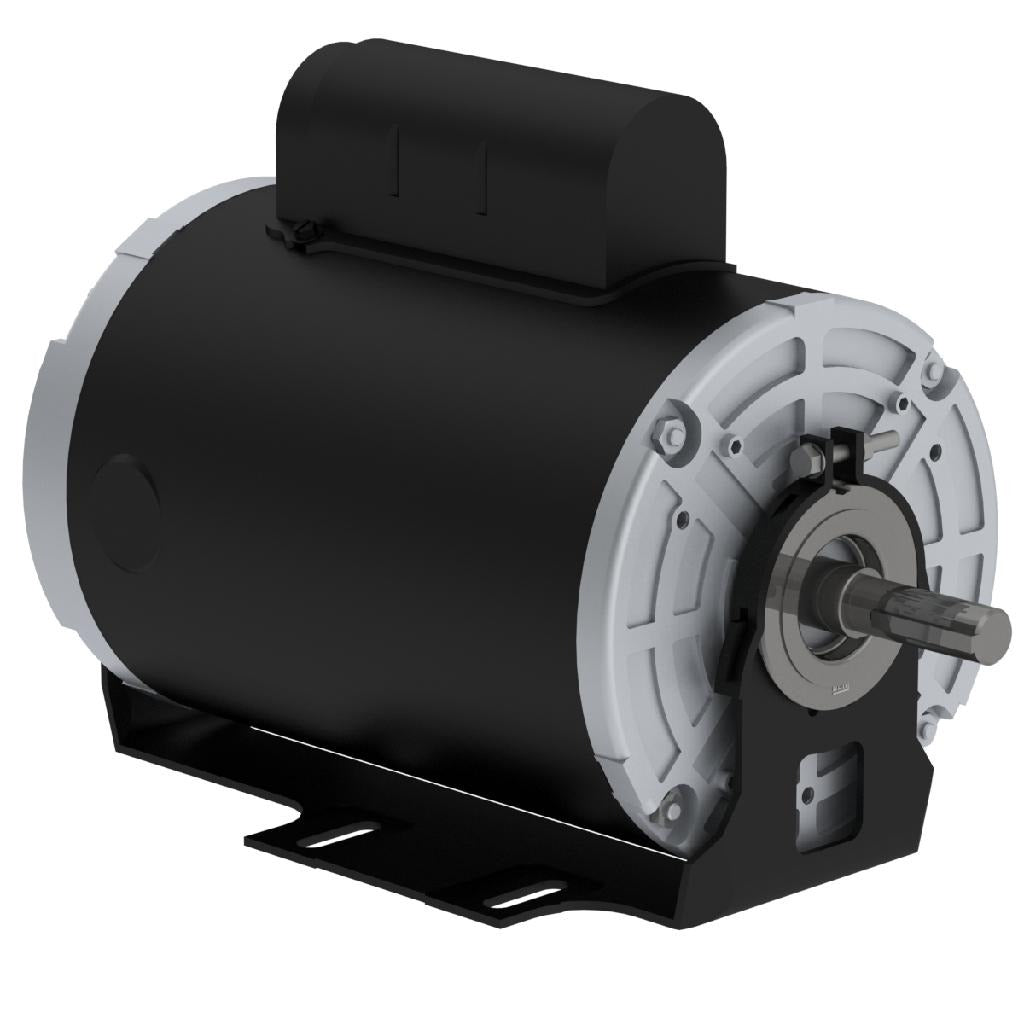

Weg - 00218OS1BFB56-S The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.
Additional Information
Catalog Number0218OS1BFB56-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles4
Synchronous speed1800 RPM
Output rating2 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC01 - ODP
Frame56H
Output2 HP (1.5 kW)
Rated speed1740 RPM
Slip0.0333
Rated voltage115/208-230 V
Rated current21.2/10.9-10.6 A
L. R. Amperes144/74.1-72.1 A
LRC6.8x(Code K)
No load current12.3/5.06-6.18 A
Rated torque6.04 ft.lb
Locked rotor torque2.5
Breakdown torque2.6
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.1542 sq.ft.lb
DesignL
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +50°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²52.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Drip Cover1/2 Key
Overload protector (phenolic)Without
Connection Cables QuantityWithout overload protector
Bolt MaterialCarbon Steel
Resilient BaseWithout
