Product Description

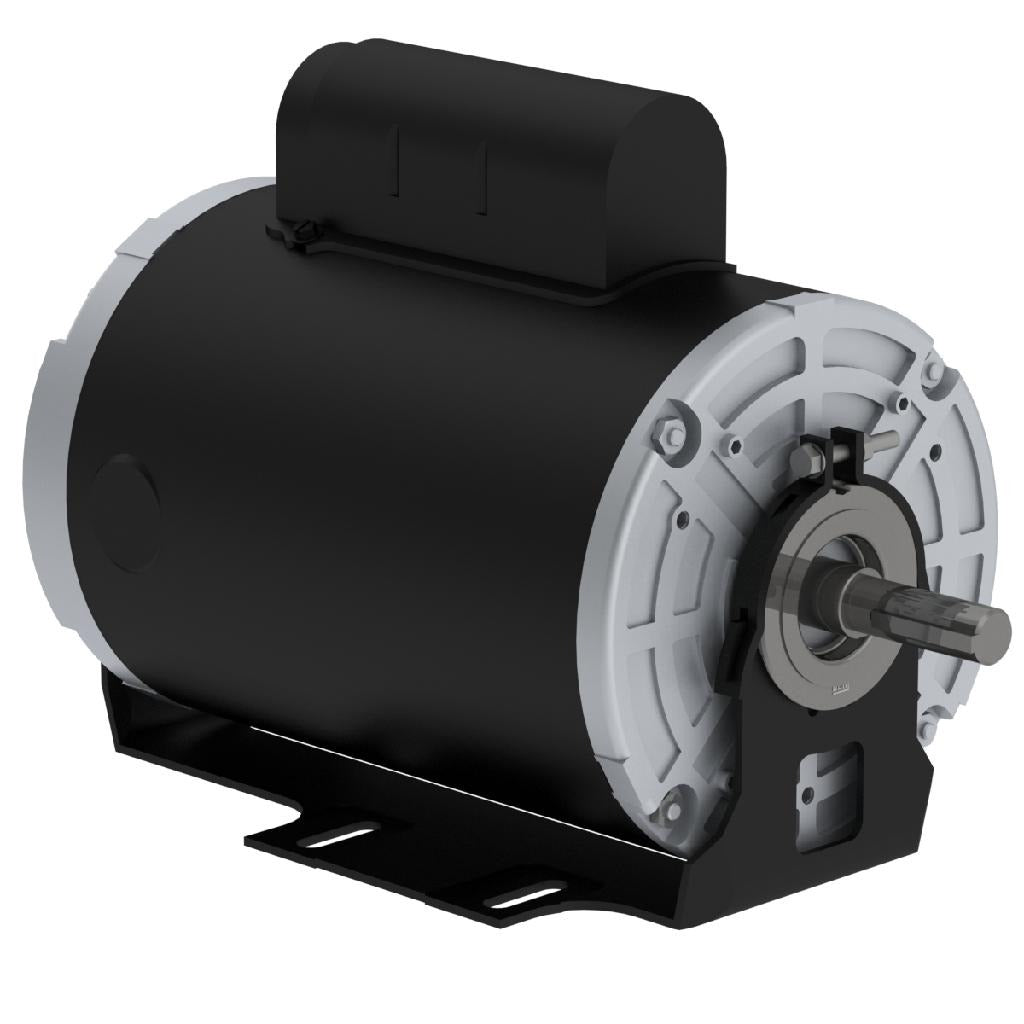

Weg - 00158OS1BFB56-S
Catalog Number:0158OS1BFB56-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles4
Synchronous speed1800 RPM
Output rating1.5 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC01 - ODP
Frame56H
Output1.5 HP (1.1 kW)
Rated speed1740 RPM
Slip0.0333
Rated voltage115/208-230 V
Rated current19.2/9.62-9.61 A
L. R. Amperes106/52.9-52.9 A
LRC5.5x(Code K)
No load current14.0/5.94-7.01 A
Rated torque4.53 ft.lb
Locked rotor torque2.29
Breakdown torque2.6
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)0.1353 sq.ft.lb
DesignL
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +50°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²52.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Drip Cover1/2 Key
Overload protector (phenolic)Without
Connection Cables QuantityWithout overload protector
Bolt MaterialCarbon Steel
Resilient BaseWithout
