category:
Washdown Duty
manufacturer:
Weg
mpn:
00512ET3EHW215TC-S
subcategory:
HydroWash - White Epoxy
weight:
148
Product Description

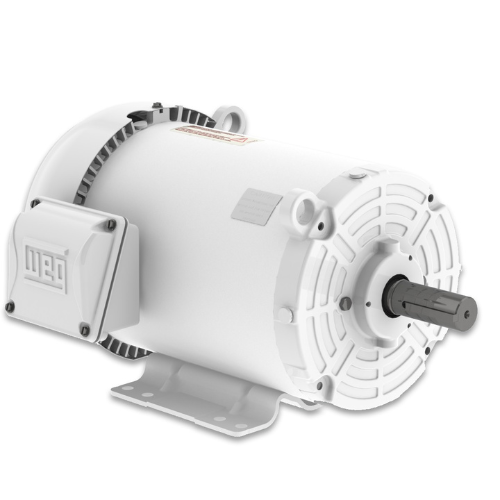

Weg - 00512ET3EHW215TC-S
Catalog Number:00512ET3EHW215TC-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles6
Degree of ProtectionIP56
Synchronous speed1200 RPM
Output rating5 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5TC
Output5 HP (3.7 kW)
Rated speed1175 RPM
Slip0.0208
Rated voltage230/460 V
Rated current13.5/6.74 A
L. R. Amperes80.9/40.4 A
LRC6.0x(Code H)
No load current6.84/3.42 A
Rated torque22.3 ft.lb
Locked rotor torque2.2
Breakdown torque2.5
Locked rotor time54s (cold) 30s (hot)
Moment of inertia (J)1.26 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²55.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft MaterialAISI 304 Stainless Steel
Painting04501 205E
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Bolt MaterialStainless Steel
Joints SealPermatex
Resilient BaseWithout
