category:
Washdown Duty
country_of_origin:
TW
manufacturer:
Weg
mpn:
01012ET3EHW256TC-S
subcategory:
HydroWash - White Epoxy
weight:
246

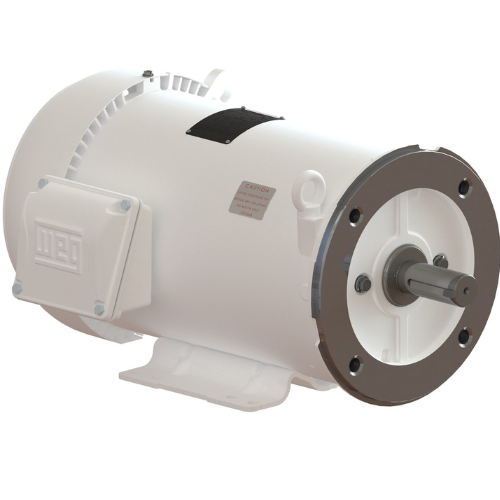

Catalog Number:01012ET3EHW256TC-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles6
Degree of ProtectionIP56
Synchronous speed1200 RPM
Output rating10 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame254/6TC
Output10 HP (7.5 kW)
Rated speed1175 RPM
Slip0.0208
Rated voltage230/460 V
Rated current27.6/13.8 A
L. R. Amperes149/74.5 A
LRC5.4x(Code G)
No load current14.2/7.12 A
Rated torque44.7 ft.lb
Locked rotor torque2.1
Breakdown torque2.29
Locked rotor time54s (cold) 30s (hot)
Moment of inertia (J)2.83 sq.ft.lb
DesignB
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²59.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1 1/4"
Terminal BlockWithout
Shaft MaterialAISI 304 Stainless Steel
Painting04501 205E
Grounding LugsSuperior
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Bolt MaterialStainless Steel
Joints SealPermatex
Resilient BaseWithout
