category:
Farm Duty
country_of_origin:
TW
manufacturer:
Weg
mpn:
00218ES1RFD182T-W22
weight:
97.2

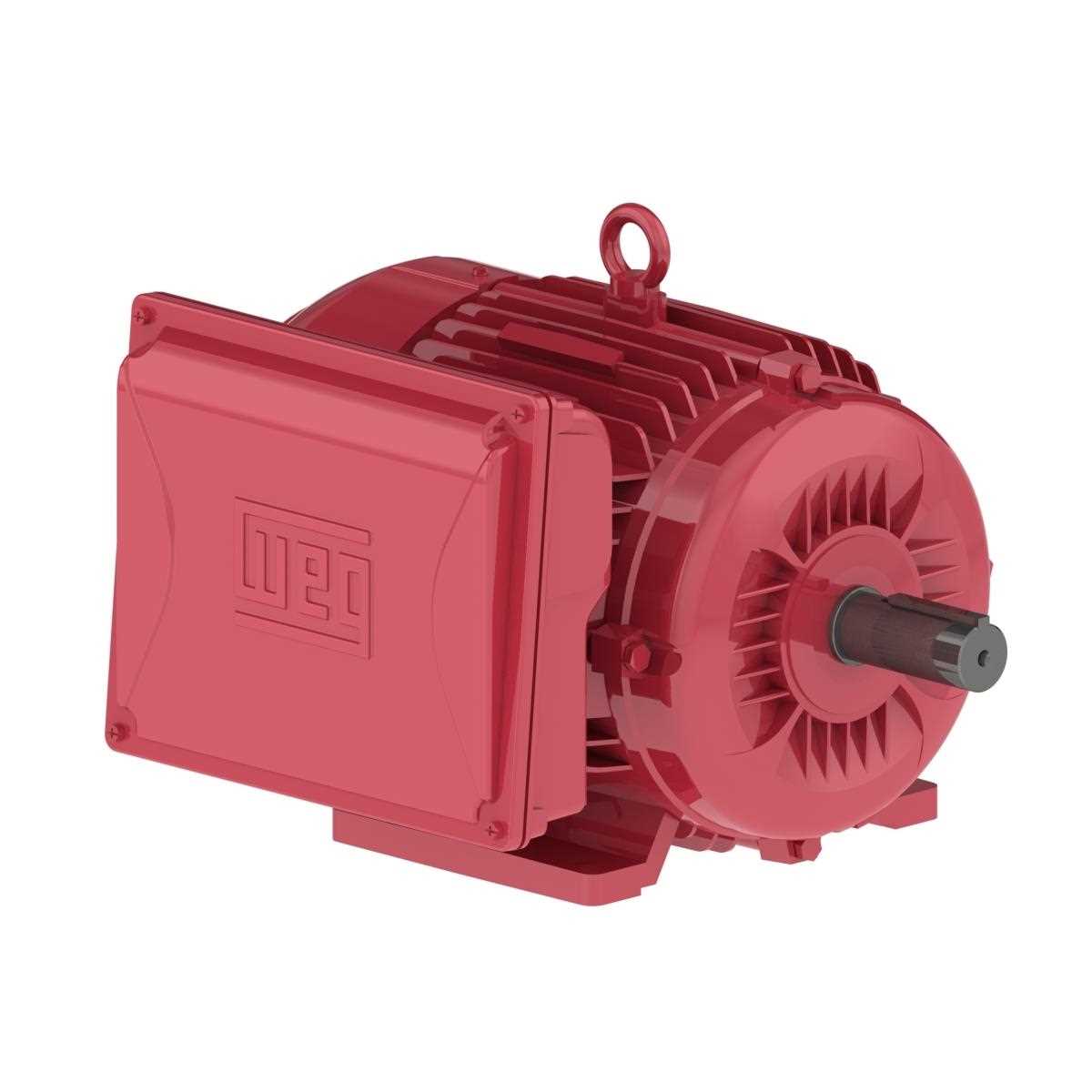

Product Description
Catalog Number:00218ES1RFD182T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage115/230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating2 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame182/4T
Output2 HP (1.5 kW)
Rated speed1740 RPM
Slip0.0333
Rated voltage115/230 V
Rated current16.8/8.40 A
L. R. Amperes124/62.2 A
LRC7.4x(Code J)
No load current4.50/2.25 A
Rated torque6.04 ft.lb
Locked rotor torque2.9
Breakdown torque2.29
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.2957 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²60.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3003 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Manual
Shaft Locking DeviceWithout
