category:
Farm Duty
manufacturer:
Weg
mpn:
00518ES1DFD215Z-W22
weight:
148

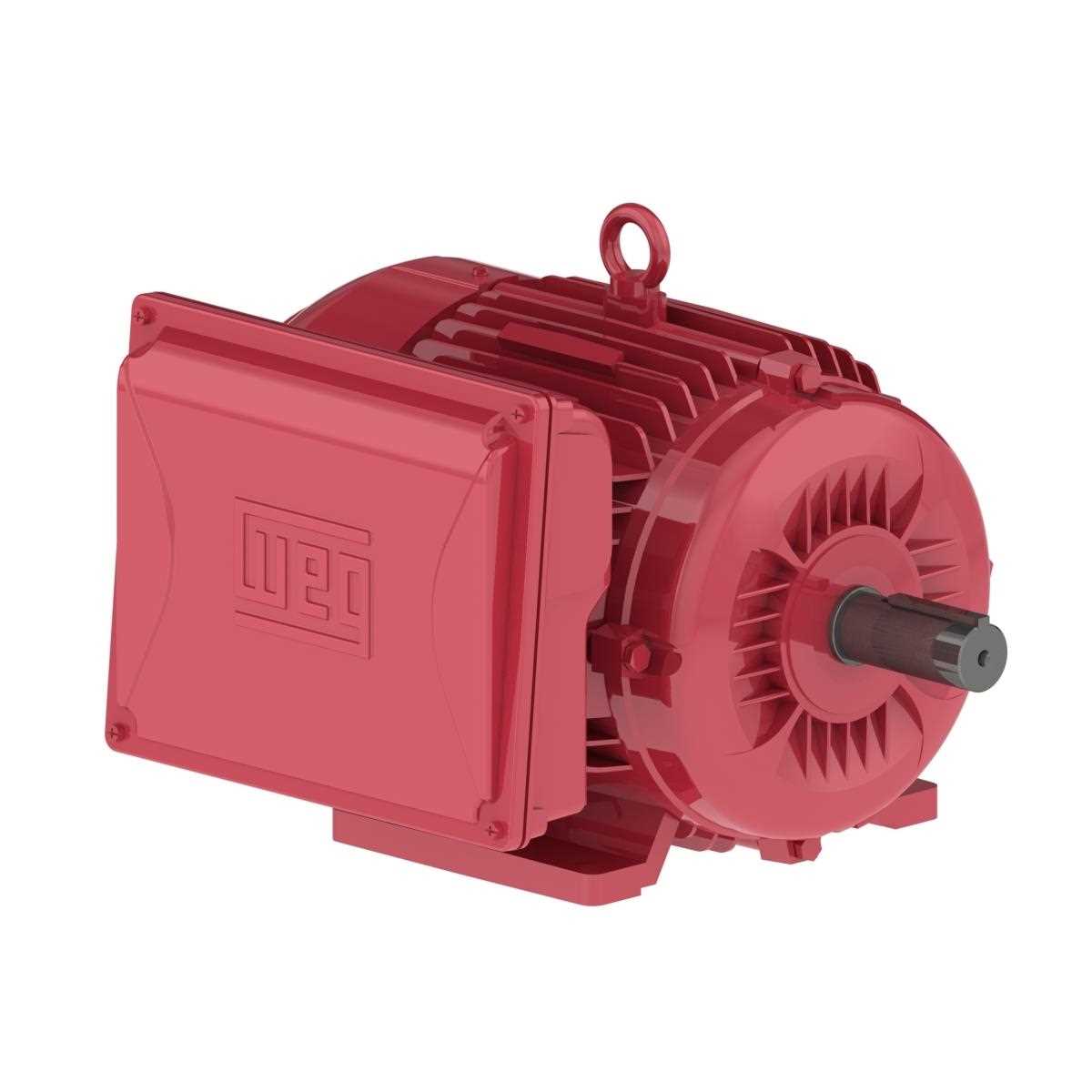

Product Description
Catalog Number:00518ES1DFD215Z-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5TZ
Output5 HP (3.7 kW)
Rated speed1750 RPM
Slip0.0278
Rated voltage230 V
Rated current21.3 A
L. R. Amperes155 A
LRC7.3x(Code J)
No load current8.80 A
Rated torque15.0 ft.lb
Locked rotor torque3.7
Breakdown torque2.5
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.7124 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²63.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3003 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Manual
Shaft Locking DeviceWithout
