Product details
category: Pump Motors

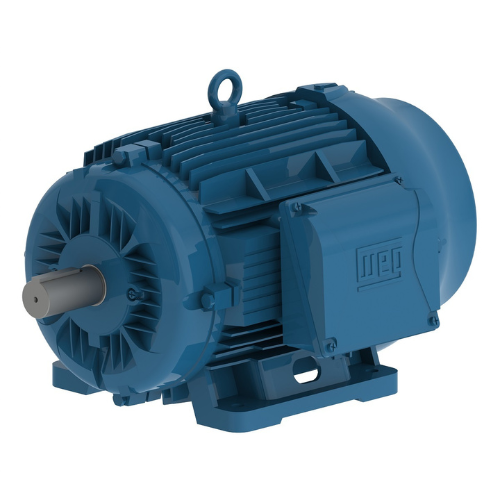

manufacturer: Weg
mpn: 01512ET3H284T-W22G
subcategory: Aegis Inside
weight: 398
Available with Internal Shaft Grounding Ring€“ AEGIS
Additional Information
Catalog Number1512ET3H284T-W22G
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles6
Degree of Protection6
Synchronous speed1200 RPM
Output rating15 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame284/6T
Output15 HP (11 kW)
Rated speed1175 RPM
Slip0.0208
Rated voltage575 V
Rated current14.3 A
L. R. Amperes91.6 A
LRC6.4x(Code G)
No load current5.60 A
Rated torque67.0 ft.lb
Locked rotor torque2.29
Breakdown torque2.6
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)7.85 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²59.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing MethodIP55
Drip Cover1/2 Key
Connection Cables QuantityWithout overload protector
Shaft Locking DeviceWithout
Regreasing SystemAt Drive end and Non-drive end
Resilient BaseWithout
