category:
Definite Purpose
manufacturer:
Weg
mpn:
01518OT3HCD254T-W40
subcategory:
Compressor Duty
weight:
260
Product Description

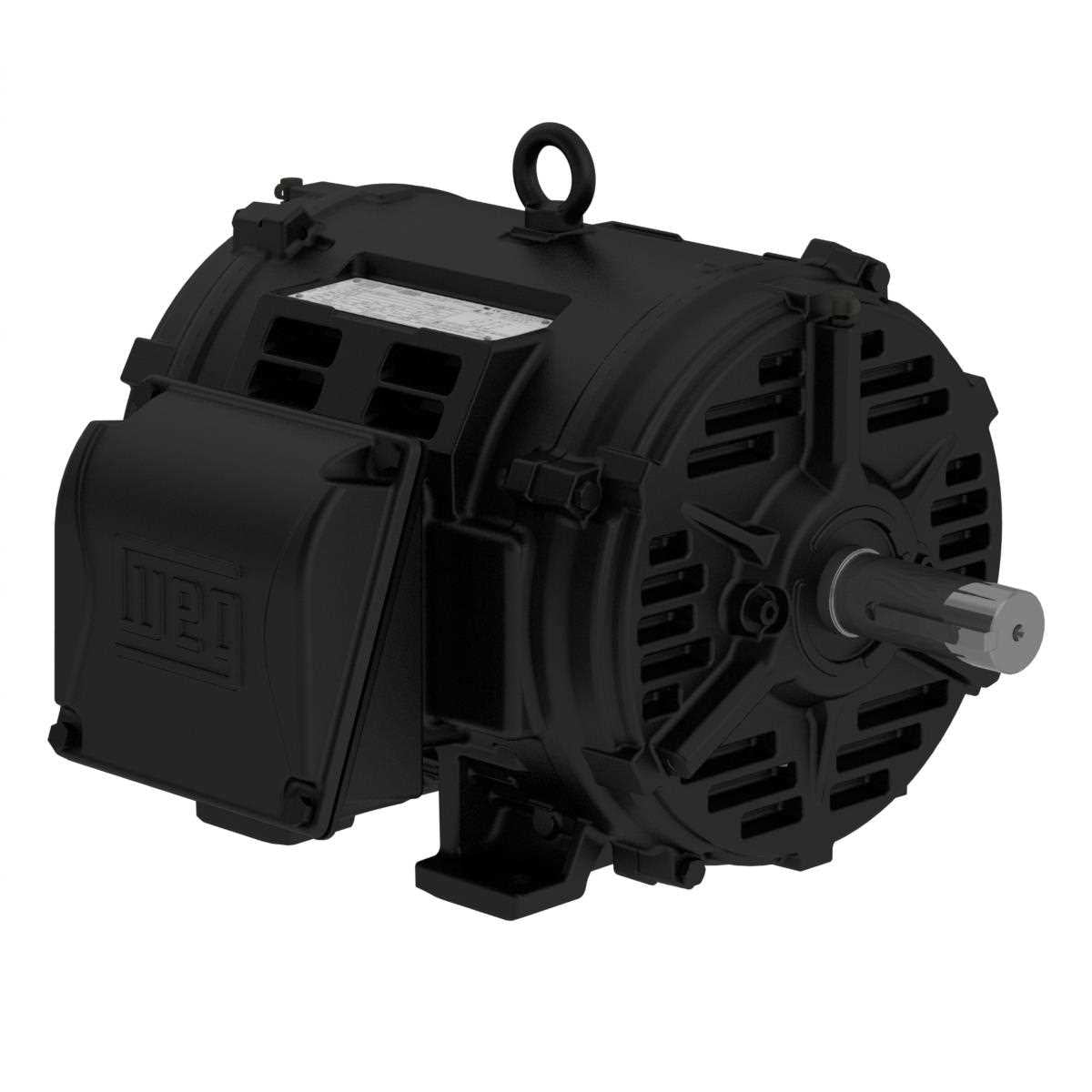

Weg - 01518OT3HCD254T-W40
Catalog Number:01518OT3HCD254T-W40
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles4
Degree of ProtectionIP23
Synchronous speed1800 rpm
Output rating15 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC01 - ODP
Frame254T
Output15 HP (11 kW)
Rated speed1775 RPM
Slip0.0139
Rated voltage575 V
Rated current14.0 A
L. R. Amperes89.6 A
LRC6.4x(Code G)
No load current5.44 A
Rated torque44.4 ft.lb
Locked rotor torque2.2
Breakdown torque2.6
Locked rotor time61s (cold) 34s (hot)
Moment of inertia (J)2.72 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²62.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Shaft Locking DeviceWithout
Regreasing SystemAt Drive end and Non-drive end
Bolt MaterialCarbon Steel
