Product details
category: Farm Duty
manufacturer: Weg
mpn: 00218ES1RFD56HC-S
weight: 53.8

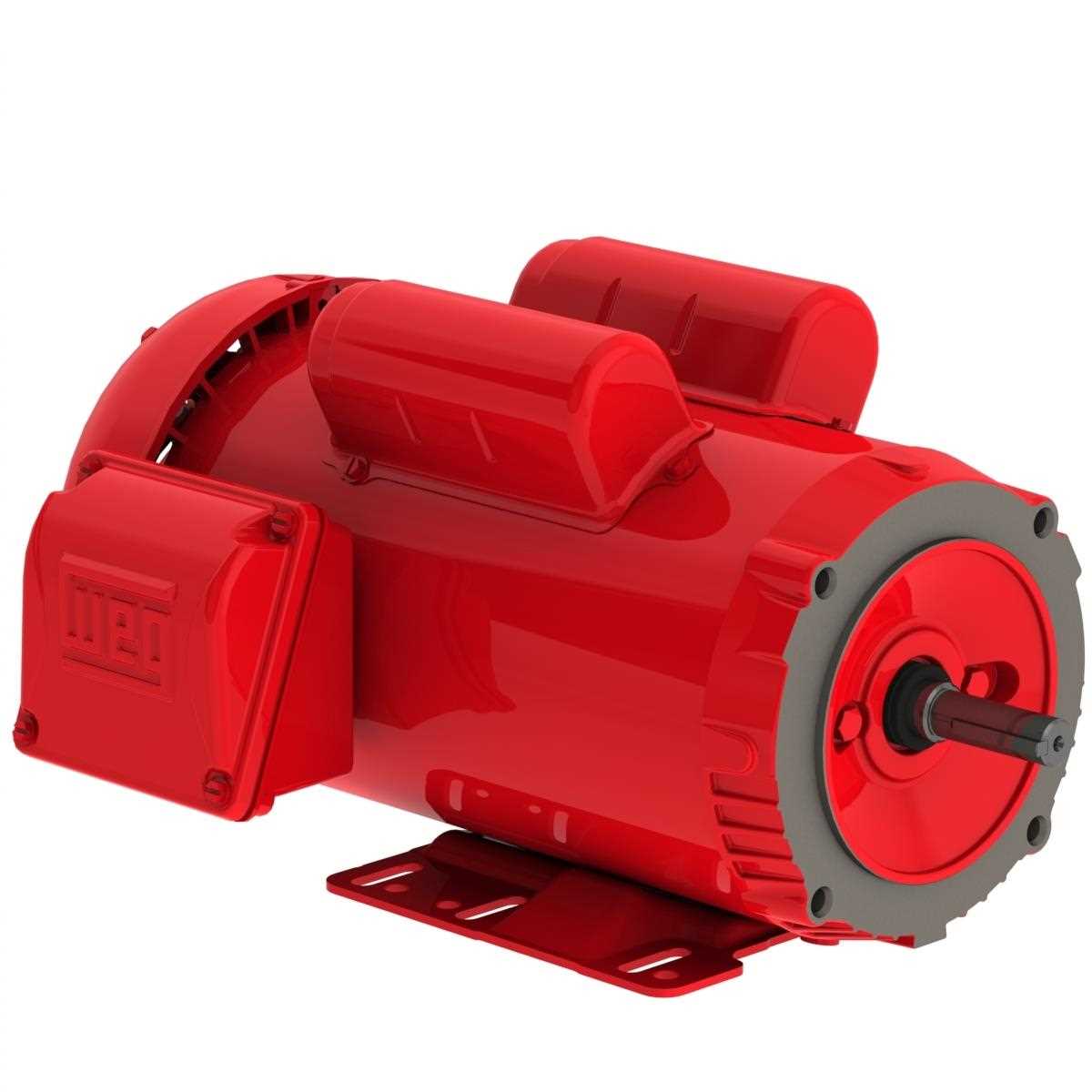

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.
Additional Information
Catalog Number00218ES1RFD56HC-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating2 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame56HC
Output2 HP (1.5 kW)
Rated speed1745 RPM
Slip0.0306
Rated voltage115/230 V
Rated current20.0/10.0 A
L. R. Amperes160/80.0 A
LRC8.0x(Code L)
No load current12.2/6.10 A
Rated torque6.02 ft.lb
Locked rotor torque2.6
Breakdown torque2.6
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.1614 sq.ft.lb
DesignL
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²54.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3003 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Manual
Bolt MaterialCarbon Steel
Resilient BaseWithout
