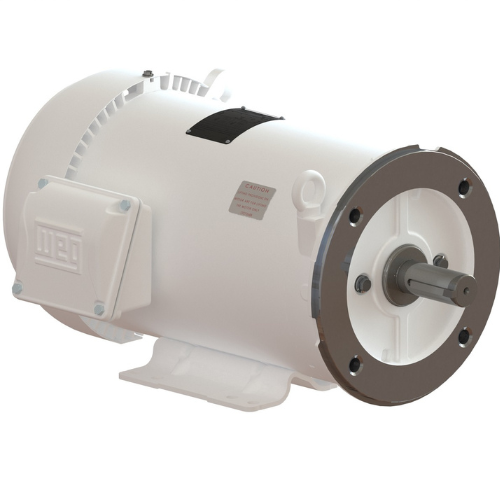

Product details
category: Washdown Duty
manufacturer: Weg
mpn: 00212ET3EHW184TC-S
subcategory: HydroWash - White Epoxy
weight: 84.6
Catalog Number:00212ET3EHW184TC-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles6
Degree of ProtectionIP56
Synchronous speed1200 RPM
Output rating2 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame182/4TC
Output2 HP (1.5 kW)
Rated speed1170 RPM
Slip0.025
Rated voltage230/460 V
Rated current6.00/3.00 A
L. R. Amperes45.0/22.5 A
LRC7.5x(Code K)
No load current3.74/1.87 A
Rated torque8.98 ft.lb
Locked rotor torque2.6
Breakdown torque3.7
Locked rotor time79s (cold) 44s (hot)
Moment of inertia (J)0.3424 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²52.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft MaterialAISI 304 Stainless Steel
Painting04501 205E
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Bolt MaterialStainless Steel
Joints SealPermatex
Resilient BaseWithout
