category:
Washdown Duty
manufacturer:
Weg
mpn:
00318ET3EHW182TC-S
subcategory:
HydroWash - White Epoxy
weight:
88.7
Product Description

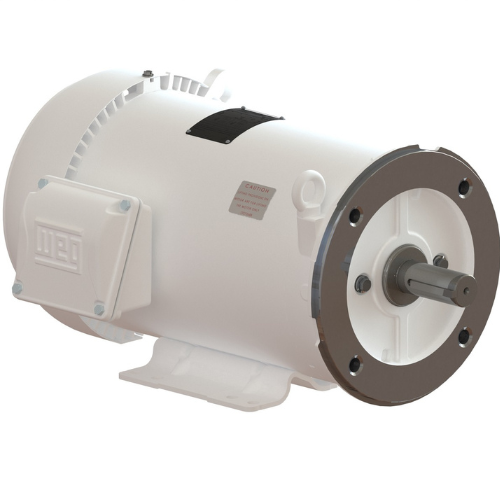

Weg - 00318ET3EHW182TC-S
Catalog Number:00318ET3EHW182TC-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles4
Degree of ProtectionIP56
Synchronous speed1800 RPM
Output rating3 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame182/4TC
Output3 HP (2.2 kW)
Rated speed1765 RPM
Slip0.0194
Rated voltage230/460 V
Rated current7.62/3.81 A
L. R. Amperes67.1/33.5 A
LRC8.8x(Code K)
No load current4.00/2.00 A
Rated torque8.93 ft.lb
Locked rotor torque2.2
Breakdown torque3
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)0.4017 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²56.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft MaterialAISI 304 Stainless Steel
Painting04501 205E
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Bolt MaterialStainless Steel
Joints SealPermatex
Resilient BaseWithout
