category:
Washdown Duty
country_of_origin:
TW
manufacturer:
Weg
mpn:
00736ET3EHW184T-S
subcategory:
HydroWash - White Epoxy
weight:
84.9
Product Description

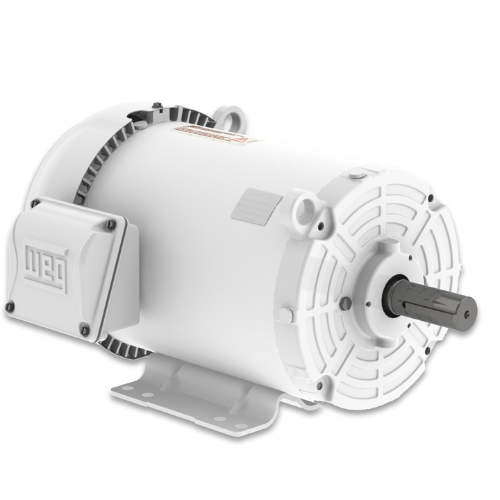

Weg - 00736ET3EHW184T-S
Catalog Number:00736ET3EHW184T-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles2
Degree of ProtectionIP56
Synchronous speed3600 RPM
Output rating7.5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame182/4T
Output7.5 HP (5.5 kW)
Rated speed3480 RPM
Slip0.0333
Rated voltage230/460 V
Rated current17.1/8.57 A
L. R. Amperes132/66.0 A
LRC7.7x(Code H)
No load current6.07/3.04 A
Rated torque11.3 ft.lb
Locked rotor torque2.7
Breakdown torque3.6
Locked rotor time34s (cold) 19s (hot)
Moment of inertia (J)0.1913 sq.ft.lb
DesignB
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft MaterialAISI 304 Stainless Steel
Painting04501 205E
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Bolt MaterialStainless Steel
Joints SealPermatex
Resilient BaseWithout
