category:
Washdown Duty
manufacturer:
Weg
mpn:
00718ET3EHW213T-S
subcategory:
HydroWash - White Epoxy
weight:
125.66334
Product Description

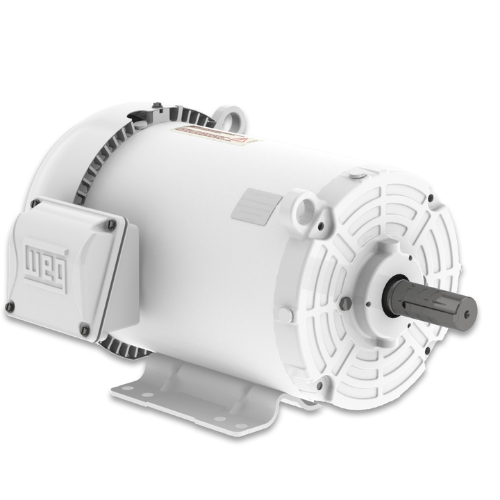

Weg - 00718ET3EHW213T-S
Catalog Number:00718ET3EHW213T-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles4
Degree of ProtectionIP56
Synchronous speed1800 RPM
Output rating7.5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5T
Output7.5 HP (5.5 kW)
Rated speed1770 RPM
Slip0.0167
Rated voltage230/460 V
Rated current18.1/9.07 A
L. R. Amperes132/66.2 A
LRC7.3x(Code H)
No load current8.81/4.41 A
Rated torque3.08 kgfm
Locked rotor torque2.6
Breakdown torque3
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)0.0395 kgm²
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²60.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft MaterialAISI 304 Stainless Steel
Painting04501 205E
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Bolt MaterialStainless Steel
Joints SealPermatex
Resilient BaseWithout
