category:
Washdown Duty
manufacturer:
Weg
mpn:
01518ET3EHW254T-S
subcategory:
HydroWash - White Epoxy
weight:
214
Product Description

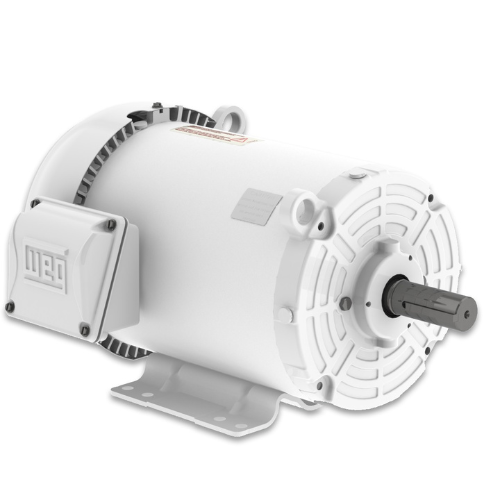

Weg - 01518ET3EHW254T-S
Catalog Number:01518ET3EHW254T-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles4
Degree of ProtectionIP56
Synchronous speed1800 RPM
Output rating15 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame254/6T
Output15 HP (11 kW)
Rated speed1770 RPM
Slip0.0167
Rated voltage230/460 V
Rated current36.4/18.2 A
L. R. Amperes237/118 A
LRC6.5x(Code G)
No load current17.3/8.65 A
Rated torque44.5 ft.lb
Locked rotor torque2.5
Breakdown torque3
Locked rotor time34s (cold) 19s (hot)
Moment of inertia (J)2.15 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1 1/4"
Terminal BlockWithout
Shaft MaterialAISI 304 Stainless Steel
Painting04501 205E
Grounding LugsSuperior
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Bolt MaterialStainless Steel
Joints SealPermatex
Resilient BaseWithout
