category:
Washdown Duty
country_of_origin:
TW
manufacturer:
Weg
mpn:
00736ET3EHW213TC-S
subcategory:
HydroWash - White Epoxy
weight:
137
Product Description

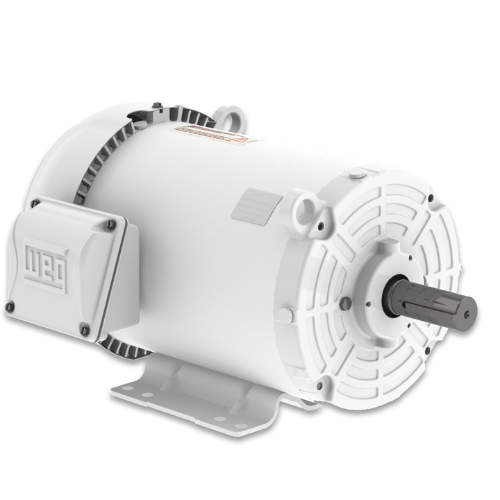

Weg - 00736ET3EHW213TC-S
Catalog Number:00736ET3EHW213TC-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles2
Degree of ProtectionIP56
Synchronous speed3600 RPM
Output rating7.5 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5TC
Output7.5 HP (5.5 kW)
Rated speed3530 RPM
Slip0.0194
Rated voltage230/460 V
Rated current17.3/8.67 A
L. R. Amperes132/65.9 A
LRC7.6x(Code H)
No load current6.63/3.32 A
Rated torque11.2 ft.lb
Locked rotor torque2.6
Breakdown torque3
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)0.5496 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²70.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft MaterialAISI 304 Stainless Steel
Painting04501 205E
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Bolt MaterialStainless Steel
Joints SealPermatex
Resilient BaseWithout
