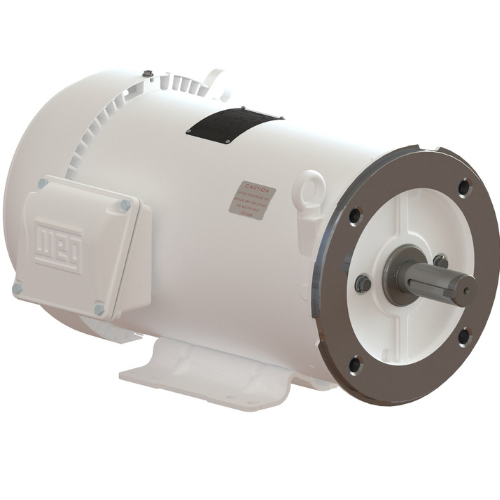

Product details
category: Washdown Duty
manufacturer: Weg
mpn: 01018ET3EHW215TC-S
subcategory: HydroWash - White Epoxy
weight: 139
Catalog Number:01018ET3EHW215TC-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles4
Degree of ProtectionIP56
Synchronous speed1800 RPM
Output rating10 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5TC
Output10 HP (7.5 kW)
Rated speed1760 RPM
Slip0.0222
Rated voltage230/460 V
Rated current24.4/12.2 A
L. R. Amperes171/85.4 A
LRC7.0x(Code H)
No load current11.1/5.54 A
Rated torque29.8 ft.lb
Locked rotor torque2.5
Breakdown torque3
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)1.07 sq.ft.lb
DesignB
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²60.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft MaterialAISI 304 Stainless Steel
Painting04501 205E
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Bolt MaterialStainless Steel
Joints SealPermatex
Resilient BaseWithout
