category:
Washdown Duty
manufacturer:
Weg
mpn:
02536ET3EHW256TC-S
subcategory:
HydroWash - White Epoxy
weight:
233
Product Description

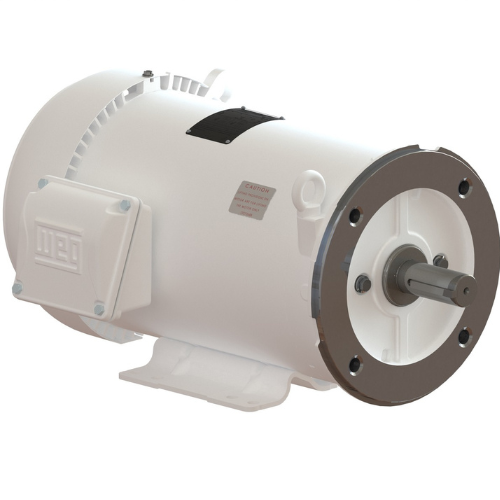

Weg - 02536ET3EHW256TC-S
Catalog Number:02536ET3EHW256TC-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles2
Degree of ProtectionIP56
Synchronous speed3600 RPM
Output rating25 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame254/6TC
Output25 HP (18.5 kW)
Rated speed3530 RPM
Slip0.0194
Rated voltage230/460 V
Rated current57.0/28.5 A
L. R. Amperes473/237 A
LRC8.3x(Code J)
No load current20.1/10.0 A
Rated torque37.2 ft.lb
Locked rotor torque2.4
Breakdown torque3.4
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)1.31 sq.ft.lb
DesignB
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²75.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1 1/4"
Terminal BlockWithout
Shaft MaterialAISI 304 Stainless Steel
Painting04501 205E
Grounding LugsSuperior
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Bolt MaterialStainless Steel
Joints SealPermatex
Resilient BaseWithout
