Product Description

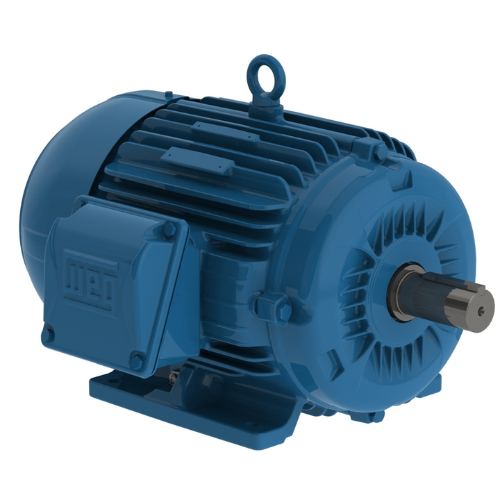

Weg - 01509ST3HIE286T-W22 The W22 IEEE 841 motors were especially designed to operate in petrochemical and chemical industries. The motor has cast iron frame, flexible mounting, solid and whole feet, low noise levels, anticorrosive internal coating and high efficiency.
Additional Information
Catalog Number1509ST3HIE286T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles8
Degree of ProtectionIP55
Synchronous speed900 RPM
Output rating15 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame284/6T
Output15 HP (11 kW)
Rated speed880 RPM
Slip0.0222
Rated voltage575 V
Rated current15.7 A
L. R. Amperes86.2 A
LRC5.5x(Code G)
No load current7.84 A
Rated torque89.5 ft.lb
Locked rotor torque2
Breakdown torque2.29
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)8.18 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²54.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
DrainType T, Threaded
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingAccording to IEEE-841 (96h)
Fan materialConductive Plastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity3
Shaft Locking DeviceWithout
Regreasing SystemStainless Steel, at Drive end and Non-drive end
Bolt MaterialCarbon Steel
Joints SealMolykote
Foot flatness(0.005 pol) 0.127 mm
