category:
Severe Duty
manufacturer:
Weg
mpn:
30018ST3HIERB449T-W2
subcategory:
Ieee 841
weight:
2966
Product Description

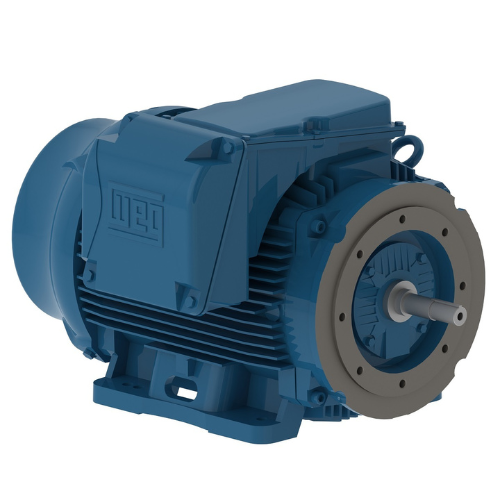

Weg - 30018ST3HIERB449T-W2 The W22 IEEE 841 motors were especially designed to operate in petrochemical and chemical industries. The motor has cast iron frame, flexible mounting, solid and whole feet, low noise levels, anticorrosive internal coating and high efficiency.
Additional Information
Catalog Number0018ST3HIERB449T-W2
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating300 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame447/9T
Output300 HP (220 kW)
Rated speed1780 RPM
Slip0.0111
Rated voltage575 V
Rated current264 A
L. R. Amperes1716 A
LRC6.5x(Code G)
No load current76.0 A
Rated torque885 ft.lb
Locked rotor torque2.29
Breakdown torque2.29
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)89.6 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²75.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Main terminal box hole2xNPT 3"
Terminal BlockWithout
DrainType T, Threaded
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingAccording to IEEE-841 (96h)
Fan materialBronze
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity3
Shaft Locking DeviceWith
Regreasing SystemExtended in Stainless Steel, at Drive end and Non-drive end
Bolt MaterialCarbon Steel
Joints SealMolykote
Foot flatness(0.005 pol) 0.127 mm
