category:
Farm Duty
manufacturer:
Weg
mpn:
00118AS1BRBPF56-S
subcategory:
Poultry Fan
weight:
33.1
Product Description

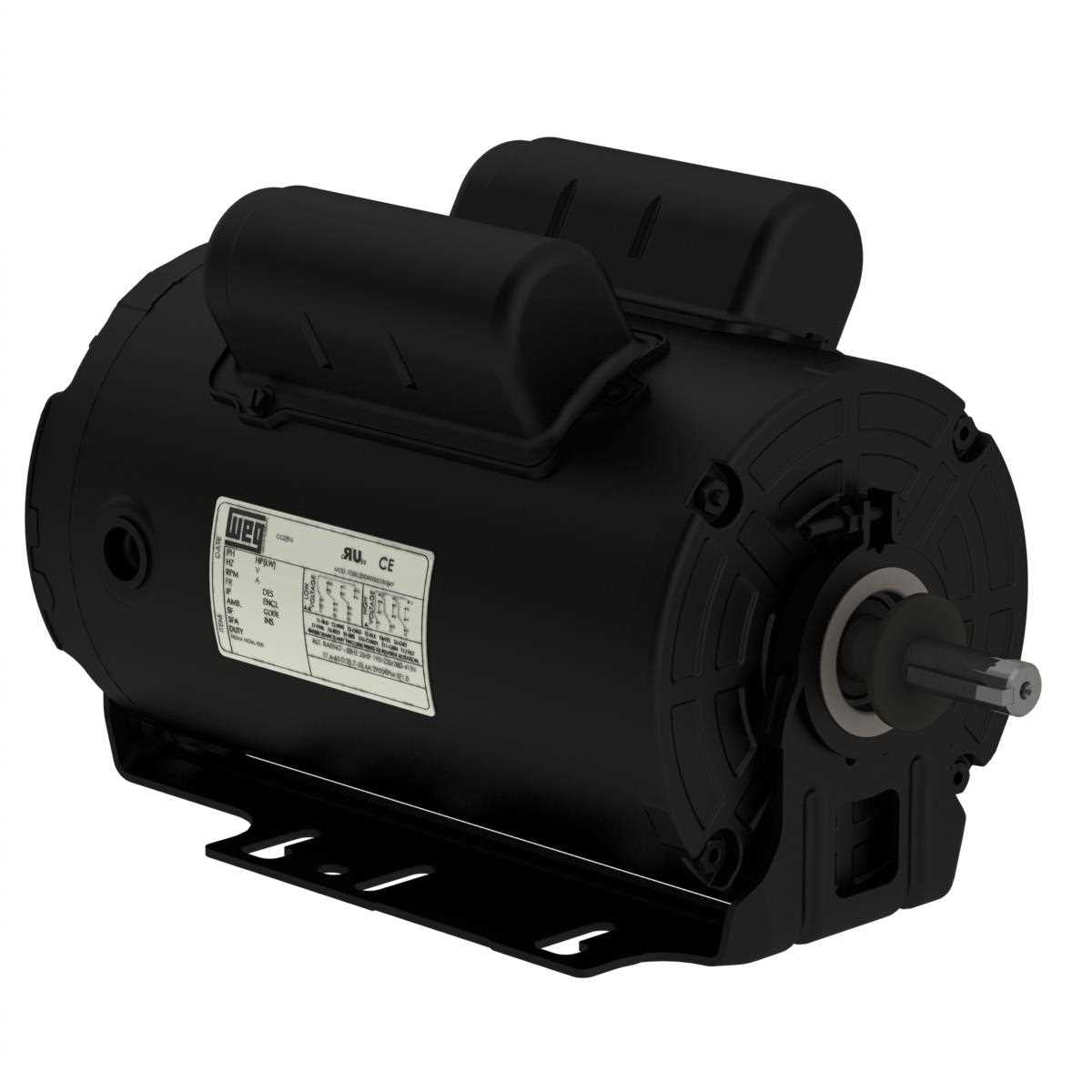

Weg - 00118AS1BRBPF56-S
Catalog Number:00118AS1BRBPF56-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating1 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC410 - TEAO
Frame56
Output1 HP (0.75 kW)
Rated speed1730 RPM
Slip0.0389
Rated voltage115/208-230 V
Rated current13.7/7.52-6.85 A
L. R. Amperes91.8/50.4-45.9 A
LRC6.7x(Code M)
No load current9.60/4.14-4.80 A
Rated torque3.04 ft.lb
Locked rotor torque2.8
Breakdown torque2.7
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.1044 sq.ft.lb
DesignL
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Automatic
Bolt MaterialCarbon Steel
Resilient BaseWith
