category:
Farm Duty
manufacturer:
Weg
mpn:
00158AS1BPFH56-S
subcategory:
Poultry Fan
weight:
46.3
Product Description

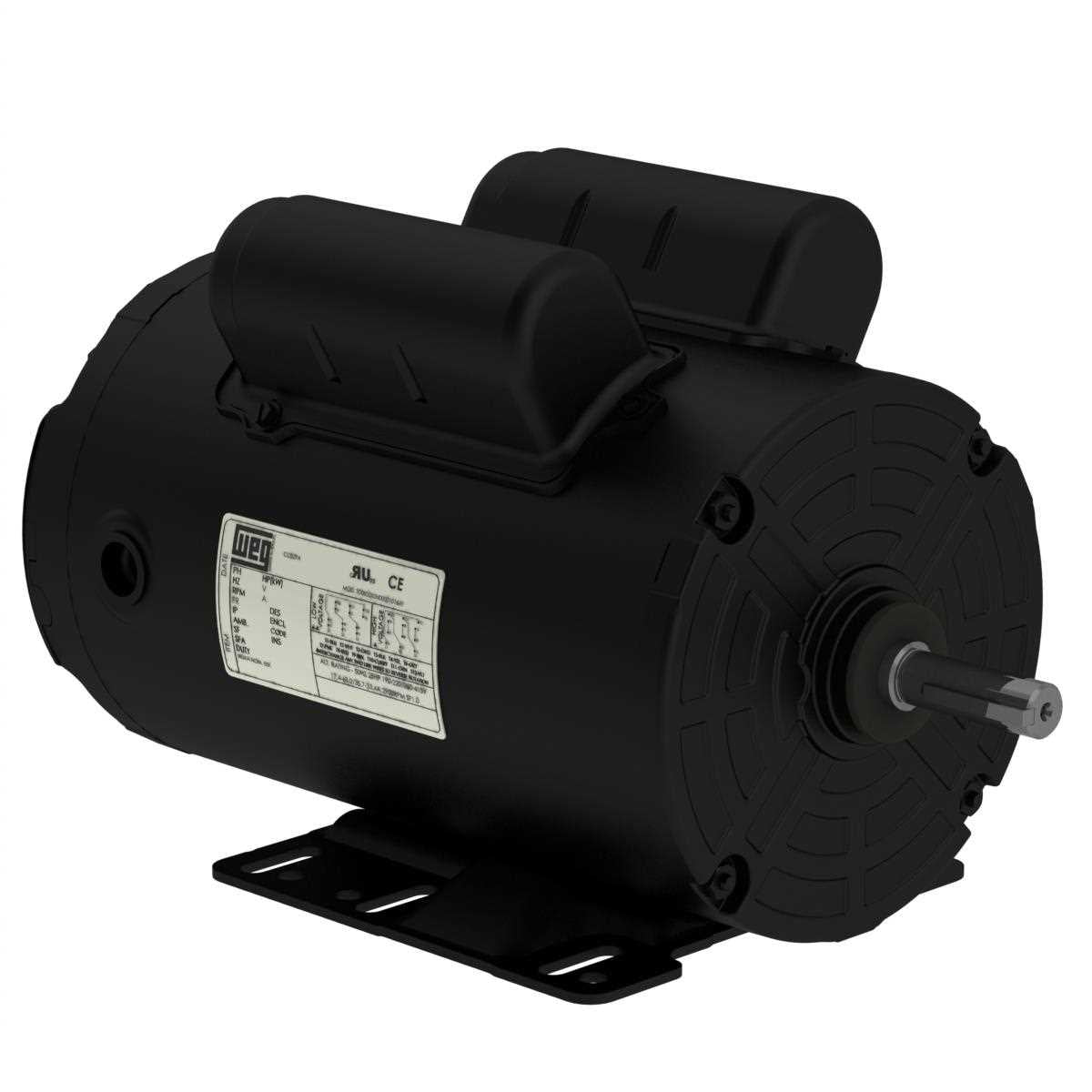

Weg - 00158AS1BPFH56-S
Catalog Number:00158AS1BPFH56-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating1.5 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC410 - TEAO
Frame56H
Output1.5 HP (1.1 kW)
Rated speed1760 RPM
Slip0.0222
Rated voltage115/208-230 V
Rated current17.5/8.56-8.74 A
L. R. Amperes142/69.3-70.8 A
LRC8.1x(Code M)
No load current13.6/5.60-6.80 A
Rated torque4.48 ft.lb
Locked rotor torque3.7
Breakdown torque3.75
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)0.1614 sq.ft.lb
DesignL
Insulation ClassF
Service factor1.30
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Automatic
Bolt MaterialCarbon Steel
Resilient BaseWithout
