category:
Farm Duty
manufacturer:
Weg
mpn:
.5018AS1BPFW56-S
subcategory:
Poultry Fan
weight:
22.5
Product Description

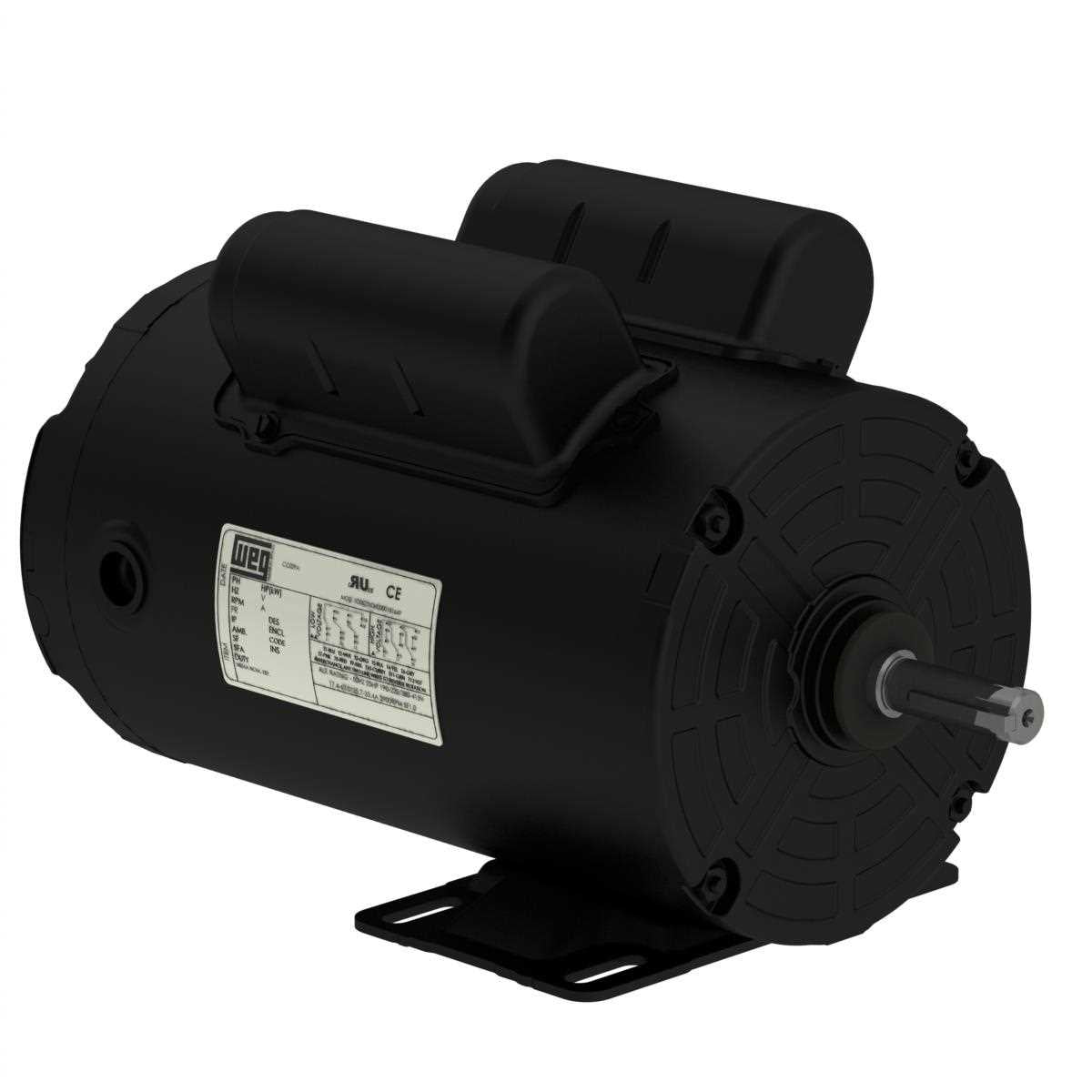

Weg - .5018AS1BPFW56-S
Catalog Number:.5018AS1BPFW56-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating0.5 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC410 - TEAO
FrameW56
Output0.5 HP (0.37 kW)
Rated speed1730 RPM
Slip0.0389
Rated voltage115/208-230 V
Rated current8.06/3.93-4.03 A
L. R. Amperes51.6/25.2-25.8 A
LRC6.4x(Code N)
No load current7.60/3.20-3.80 A
Rated torque1.52 ft.lb
Locked rotor torque1.5
Breakdown torque2.54
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)0.0522 sq.ft.lb
Insulation ClassF
Service factor1.25
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing MethodNot Balanced
Drip CoverWithout
Overload protector (phenolic)Automatic
Bolt MaterialCarbon Steel
Resilient BaseWithout
