category:
Farm Duty
manufacturer:
Weg
mpn:
00118AS1BPFH56-S
subcategory:
Poultry Fan
weight:
43
Product Description

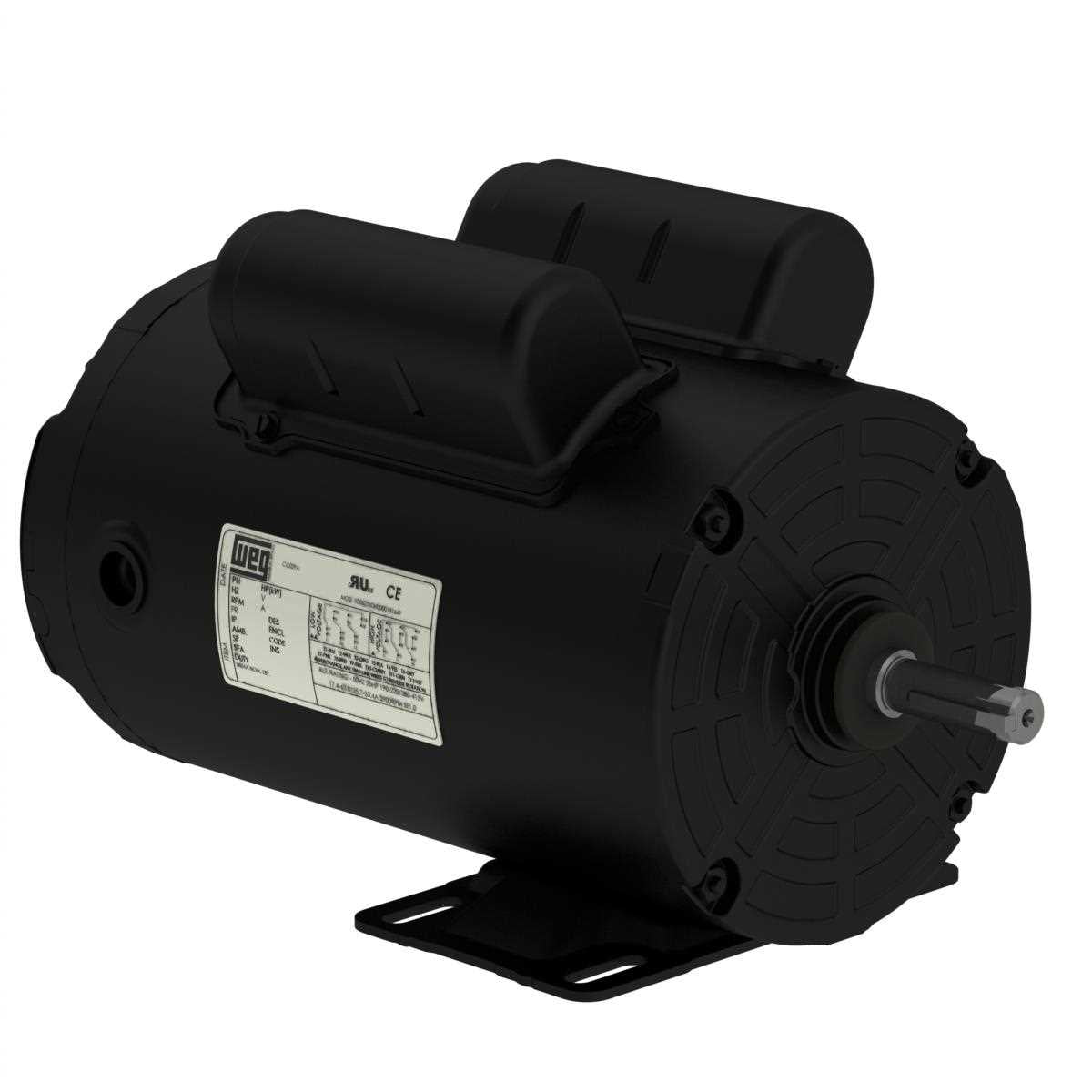

Weg - 00118AS1BPFH56-S
Catalog Number:00118AS1BPFH56-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating1 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC410 - TEAO
Frame56
Output1 HP (0.75 kW)
Rated speed1770 RPM
Slip0.0167
Rated voltage115/208-230 V
Rated current12.4/5.86-6.20 A
L. R. Amperes124/58.6-62.0 A
LRC10.0x(Code R)
No load current8.16/3.33-4.09 A
Rated torque2.97 ft.lb
Locked rotor torque4.2
Breakdown torque4.59
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)0.1044 sq.ft.lb
DesignL
Insulation ClassF
Service factor1.40
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Automatic
Bolt MaterialCarbon Steel
Resilient BaseWithout
