category:
Farm Duty
manufacturer:
Weg
mpn:
00156AP3EAF143TZ-S
subcategory:
Grain Dryer
weight:
30.9

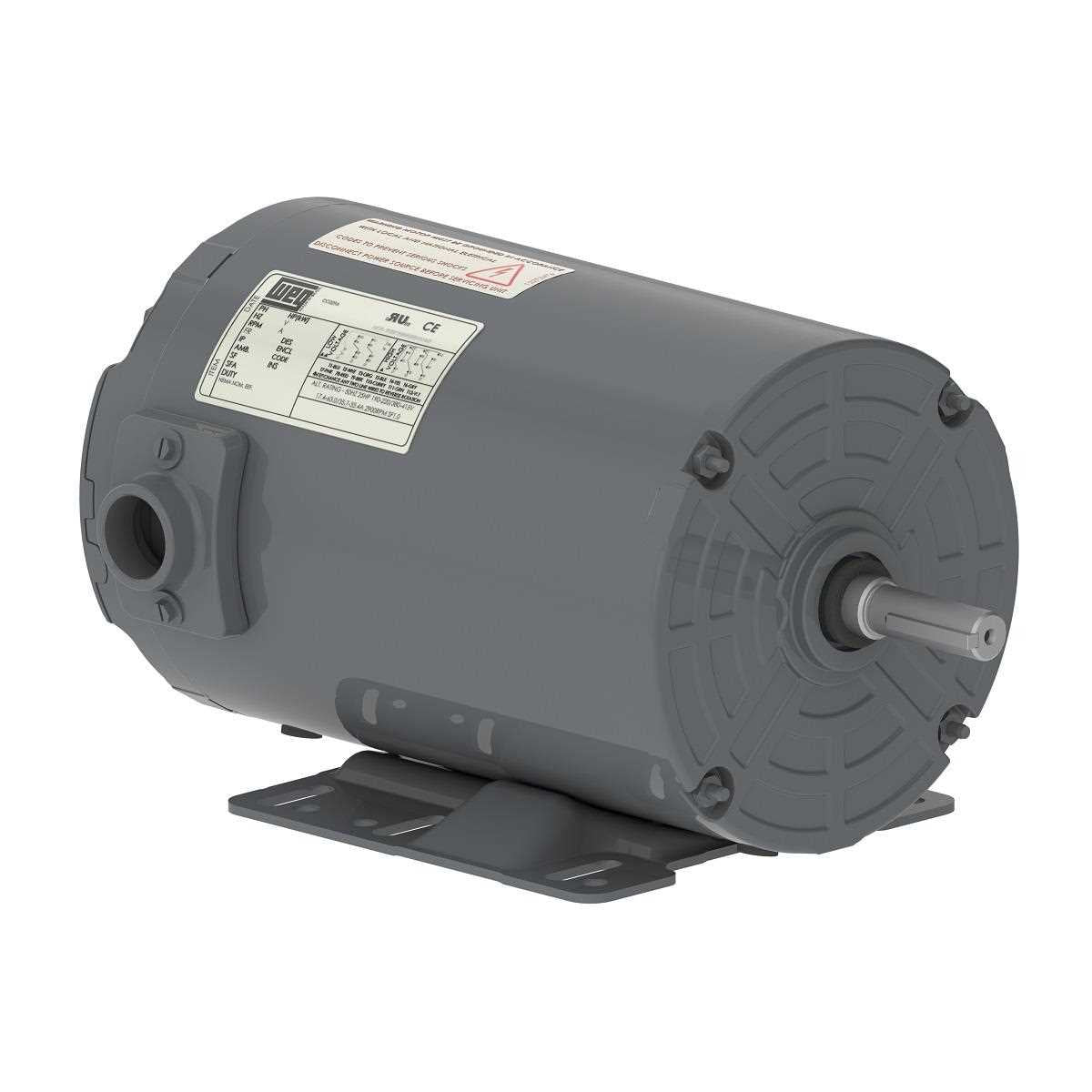

Catalog Number:00156AP3EAF143TZ-S
StandardNEMA MG-1
Frequency50 Hz
Voltage208-230/460//190-220/380-415 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 rpm
Output rating1.5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC410 - TEAO
Frame143/5TZ
Output1.5 HP (1.1 kW)
Rated speed2825 RPM
Slip0.0583
Rated voltage190/380 V
Rated current4.62/2.31 A
L. R. Amperes27.7/13.9 A
LRC6.0x(Code G)
No load current1.60/0.800 A
Rated torque2.79 ft.lb
Locked rotor torque1.9
Breakdown torque2.29
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)0.0356 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7031 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Bolt MaterialCarbon Steel
Resilient BaseWithout
