category:
Brake Motor
manufacturer:
Weg
mpn:
00318ET3HBM182TC-S
weight:
2.2
Product Description

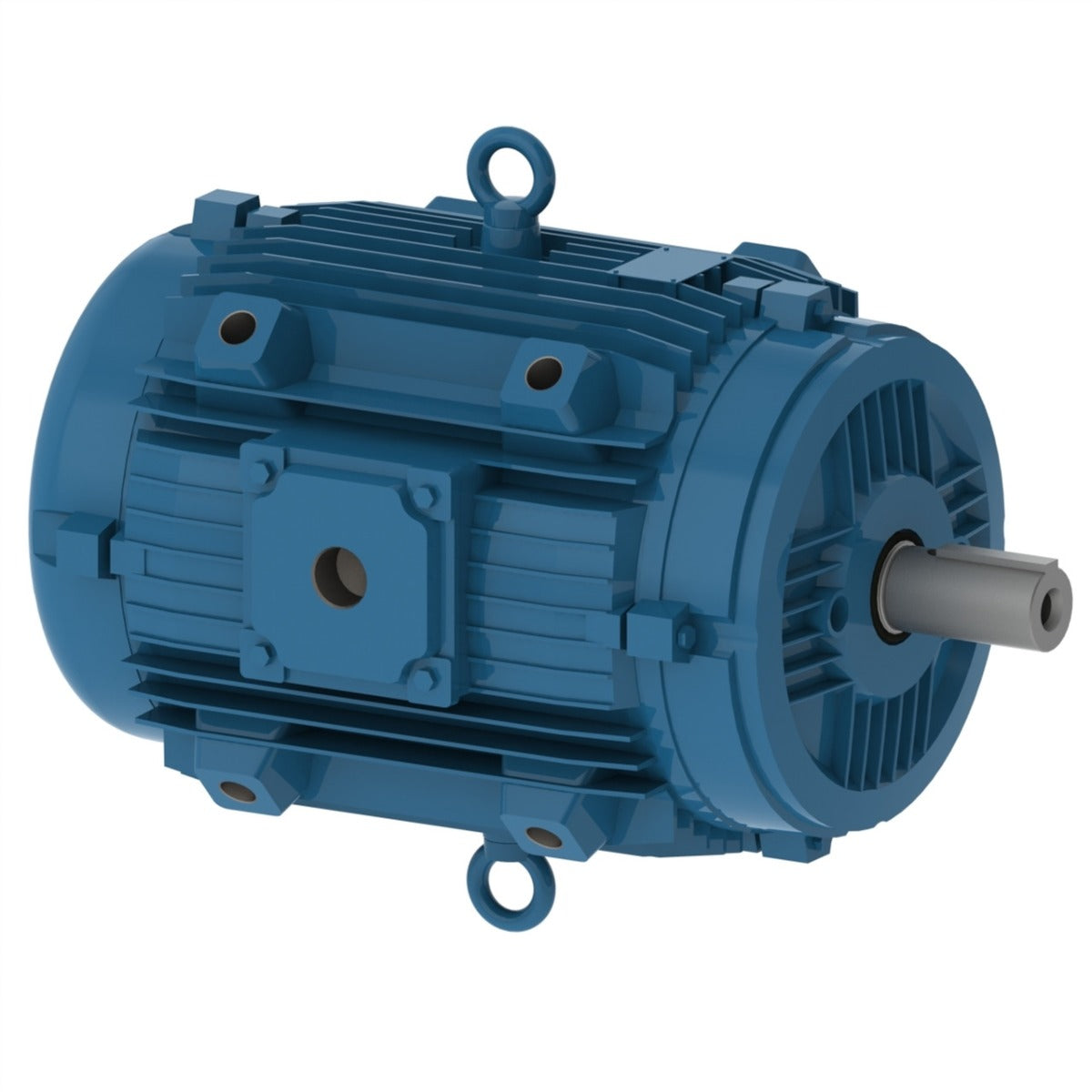

Weg - 00318ET3HBM182TC-S
Catalog Number:00318ET3HBM182TC-S
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating3 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame182/4TC
Output3 HP (2.2 kW)
Rated speed1765 RPM
Slip0.0194
Rated voltage575 V
Rated current3.05 A
L. R. Amperes26.8 A
LRC8.8x(Code K)
No load current1.60 A
Rated torque8.93 ft.lb
Locked rotor torque2.2
Breakdown torque3
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)0.4017 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²56.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialAluminum
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Bolt MaterialCarbon Steel
Brake input Voltage575 V
Resilient BaseWithout
